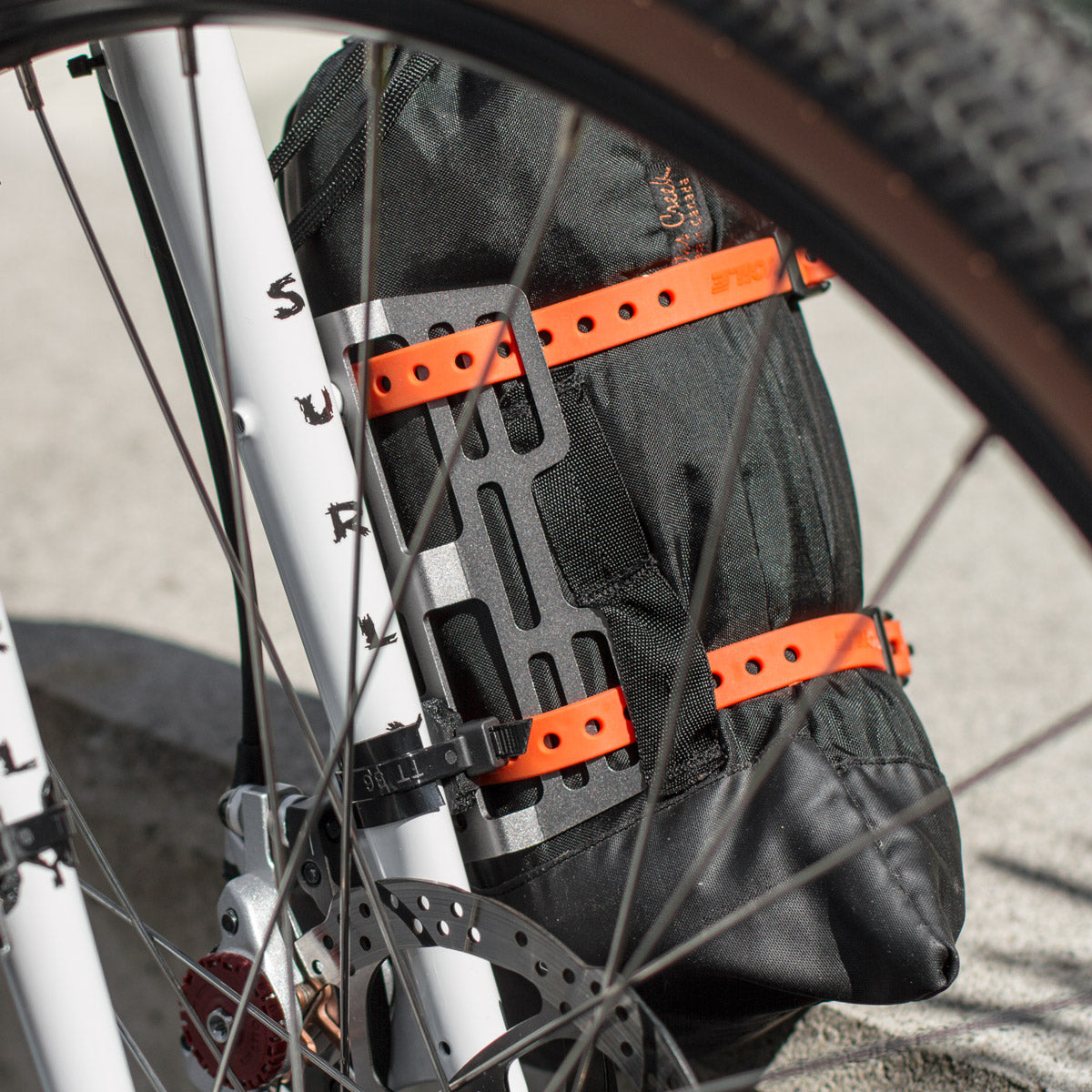

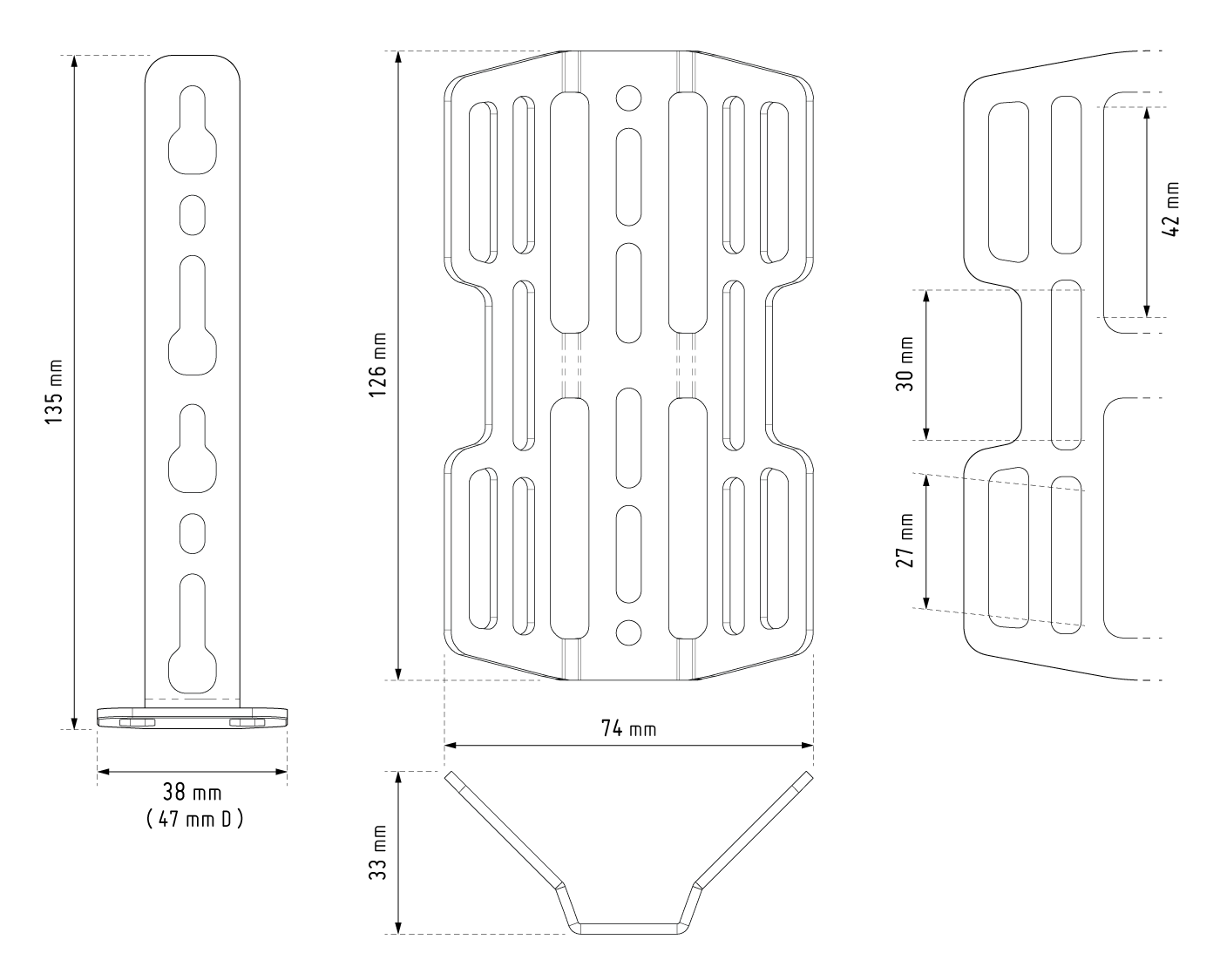

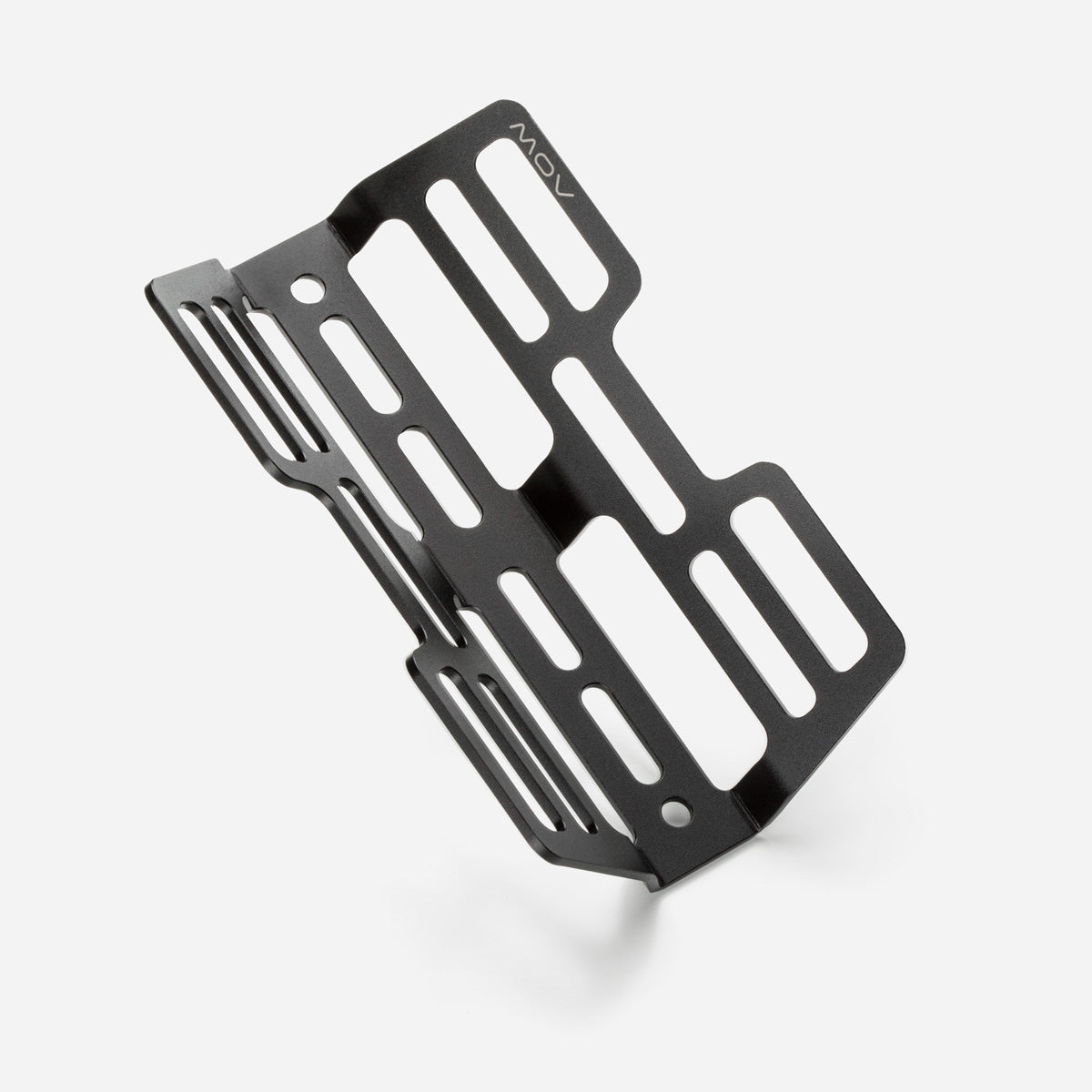

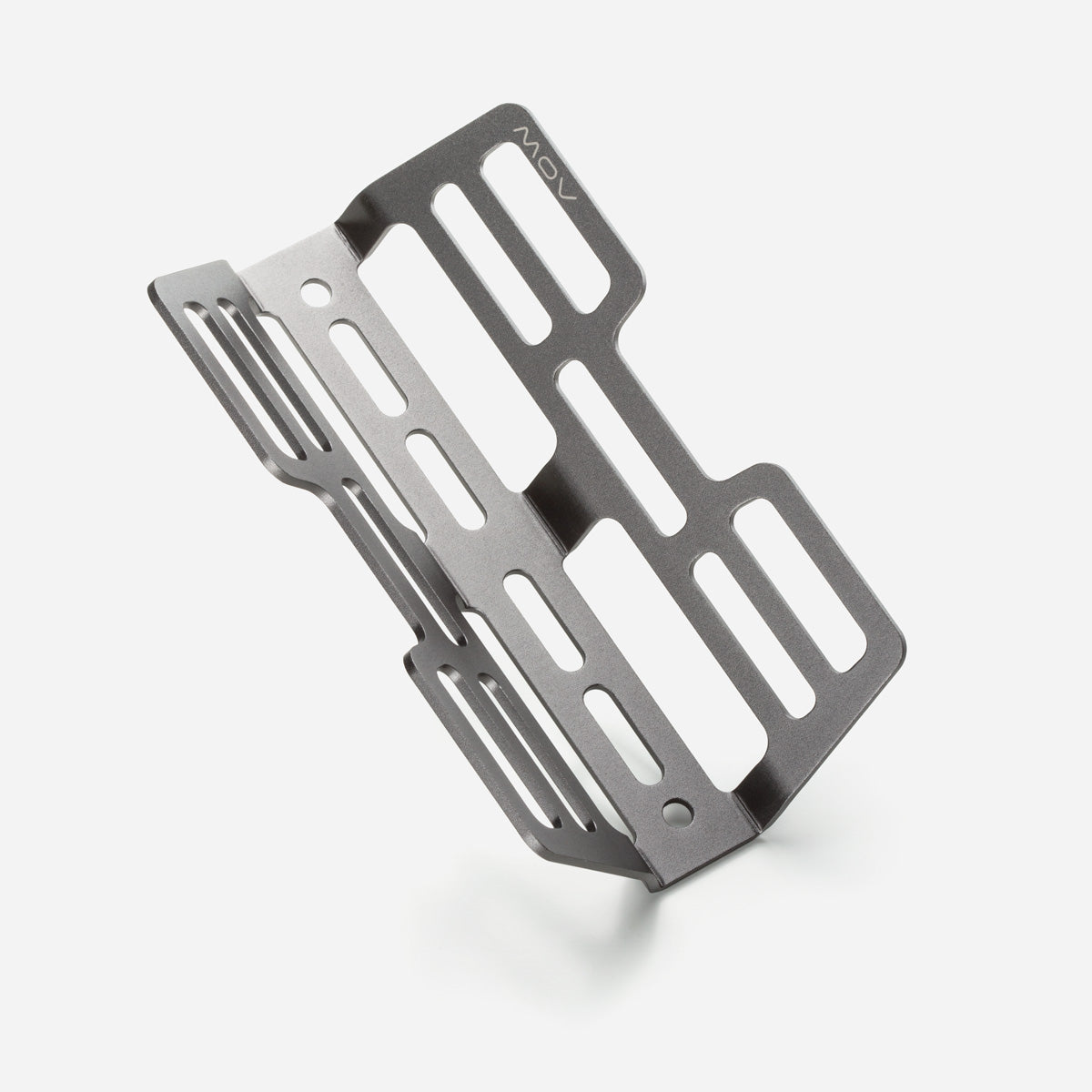

Key Dimensions

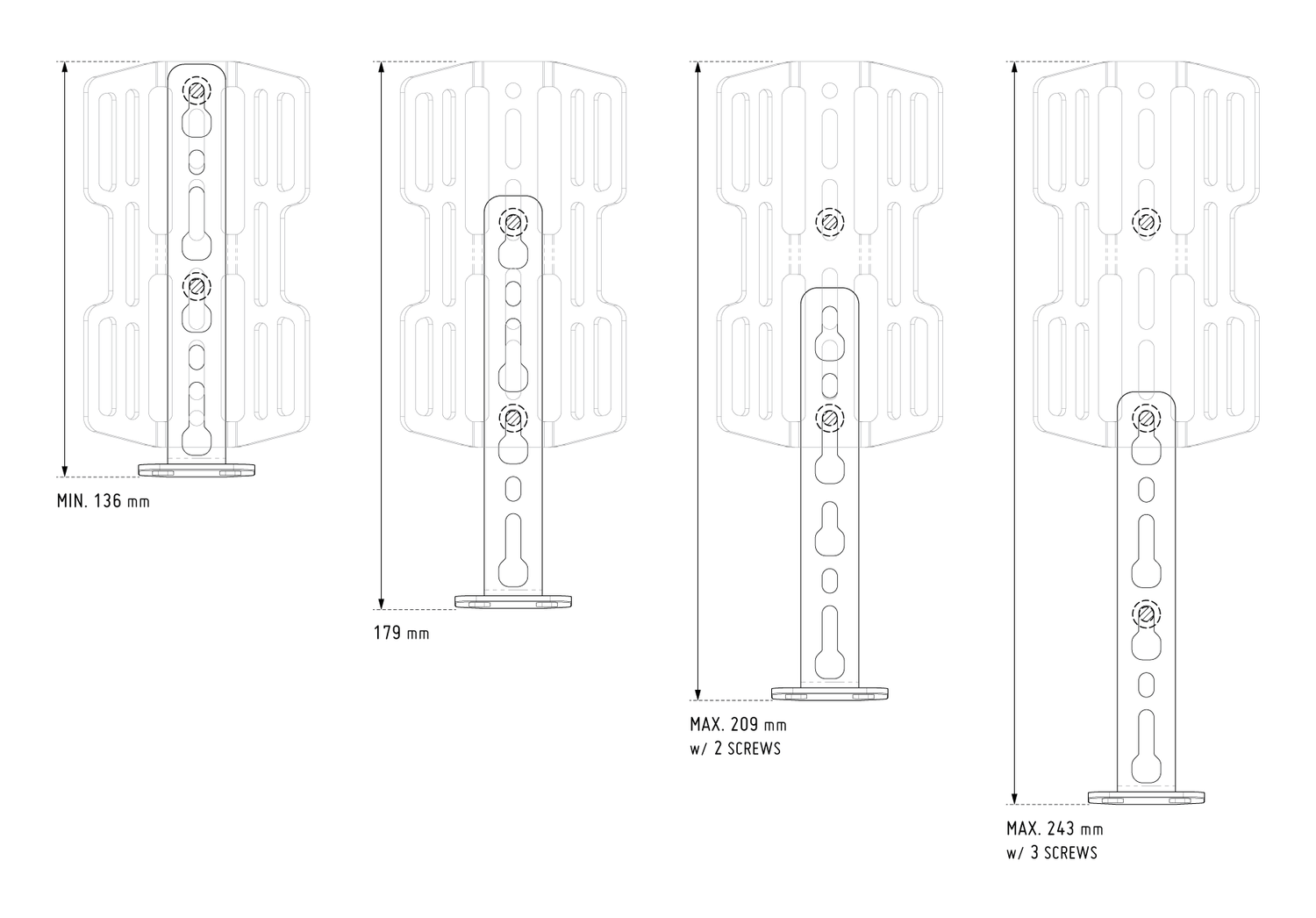

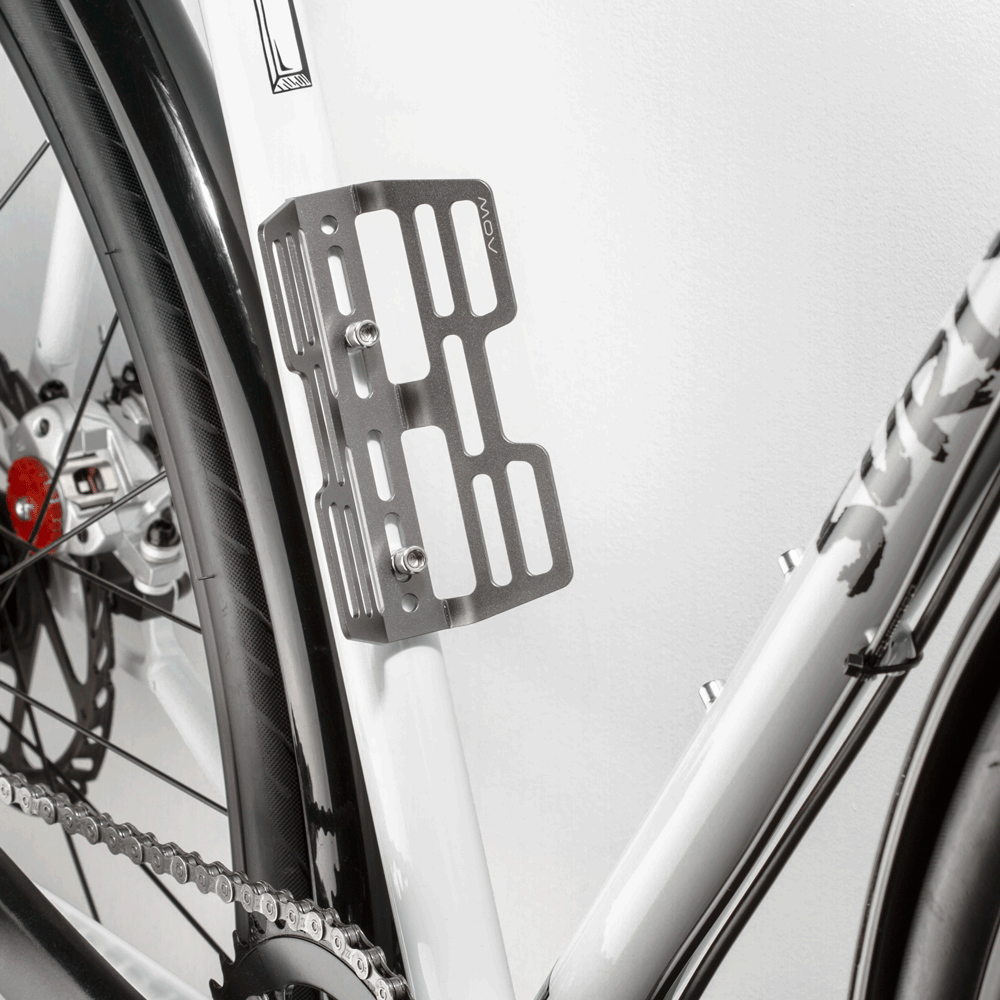

Extension Range

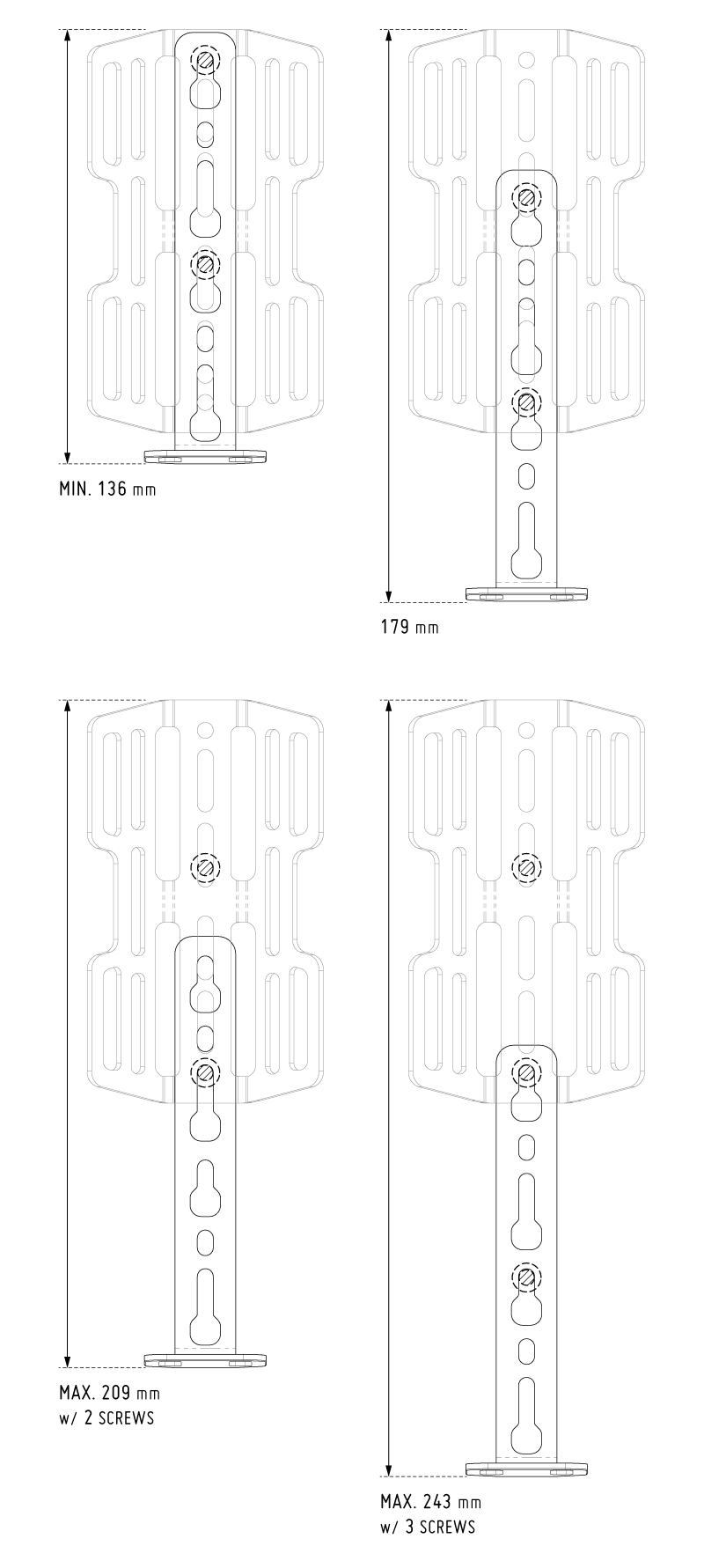

The diagrams demonstrate the overall length in basic setups. The final length varies according to different rack and bracket arrangements.
Extension Range

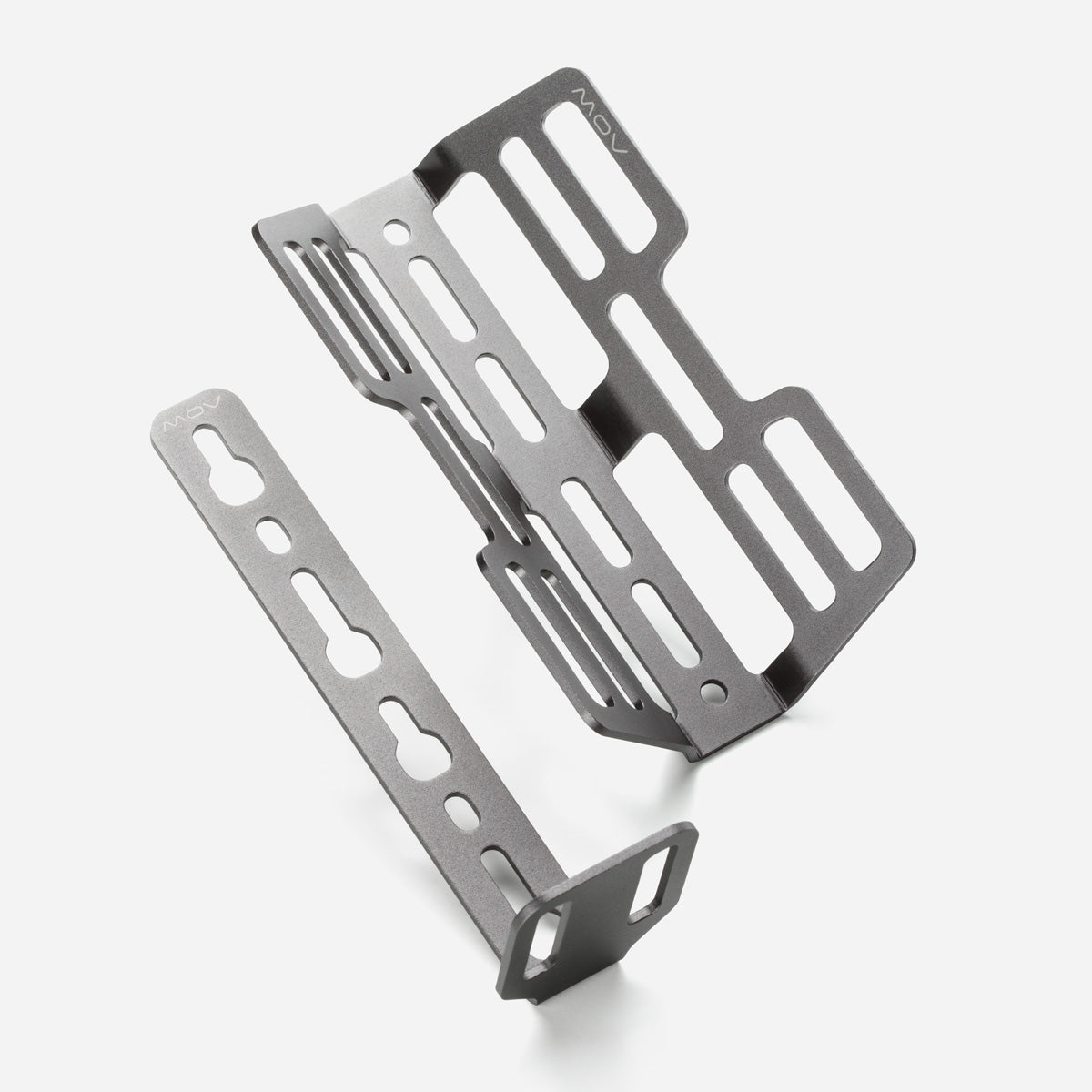

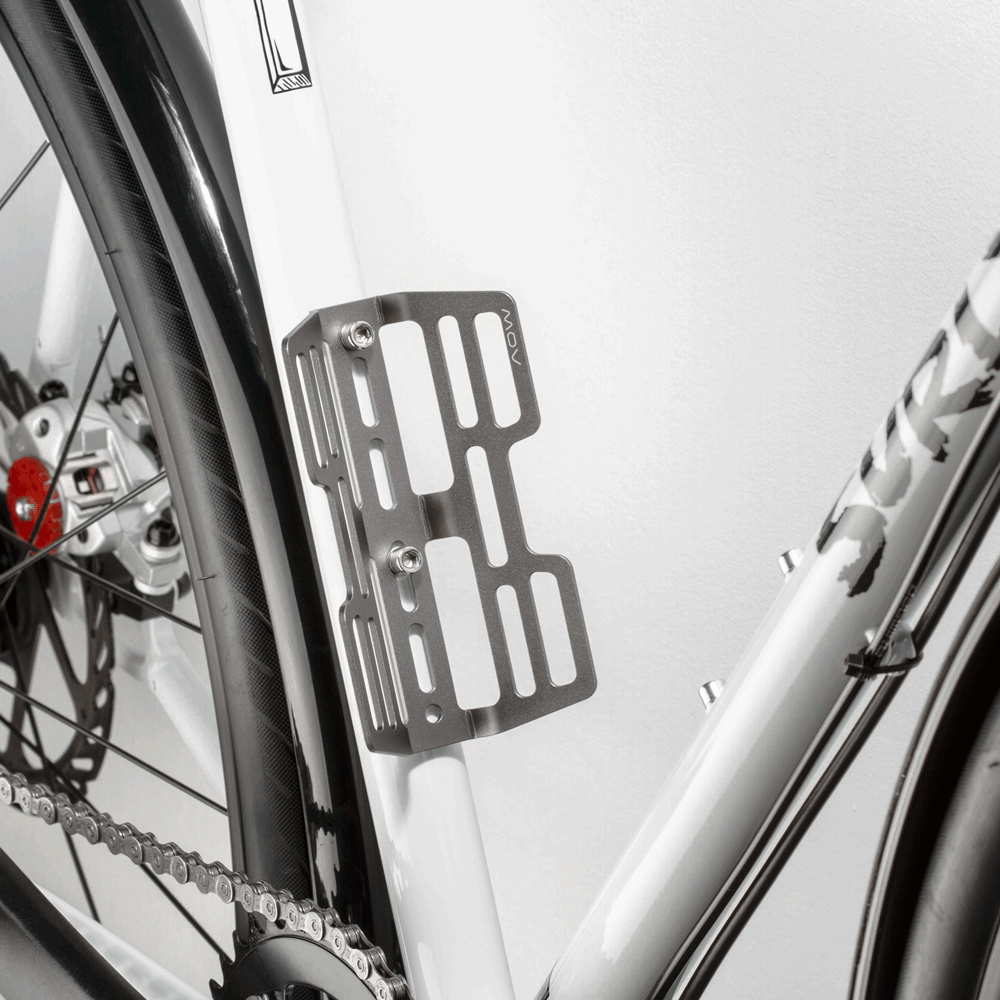

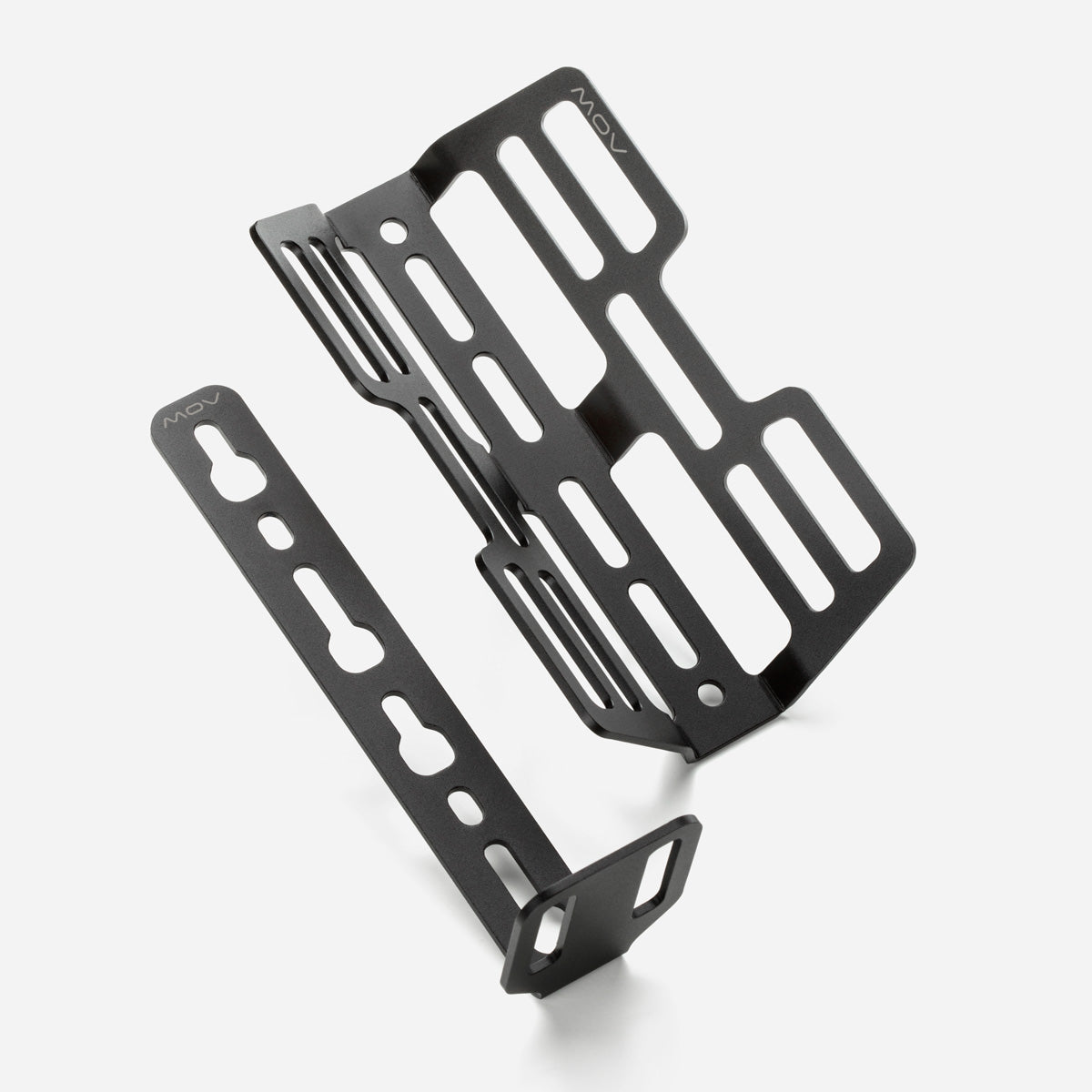

L-Bracket installation
The spoon-shaped holes on the L-bracket are for quick insertion and repositioning from the rack when the screws are halfway inserted or released.
Flexible positioning

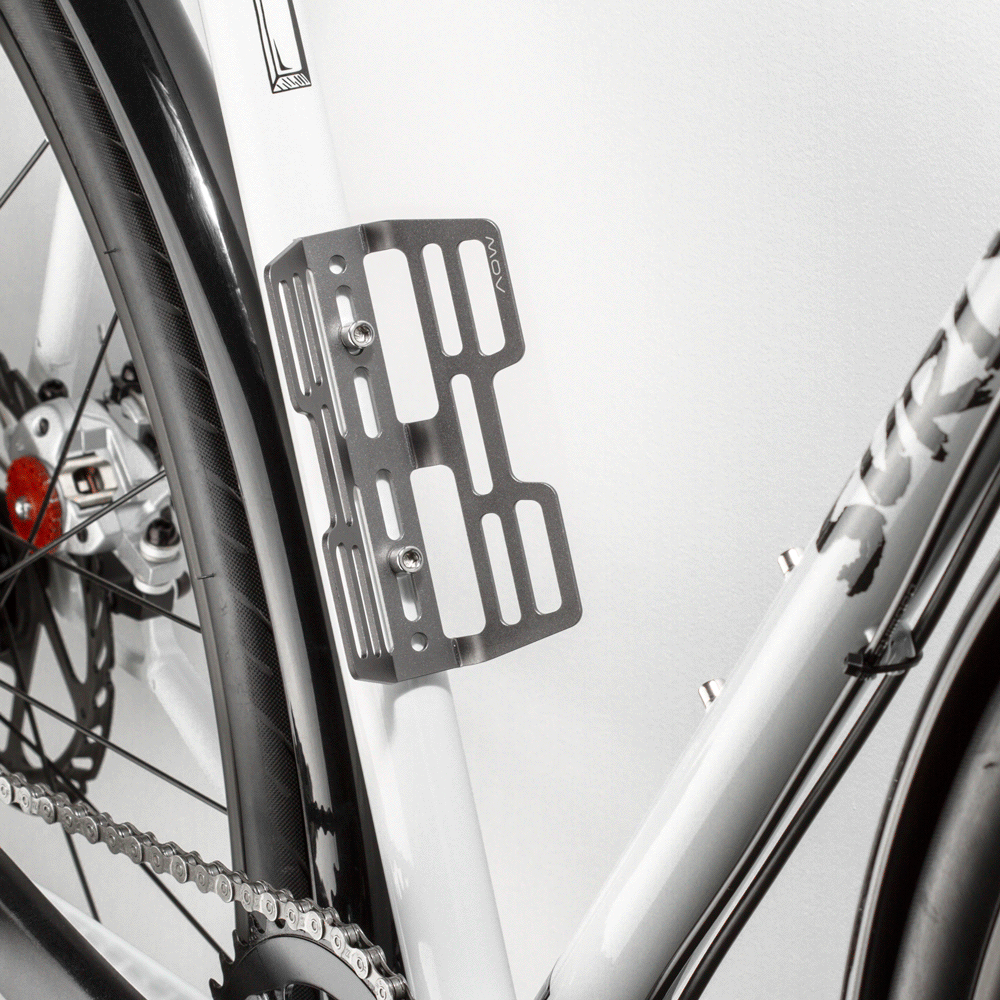

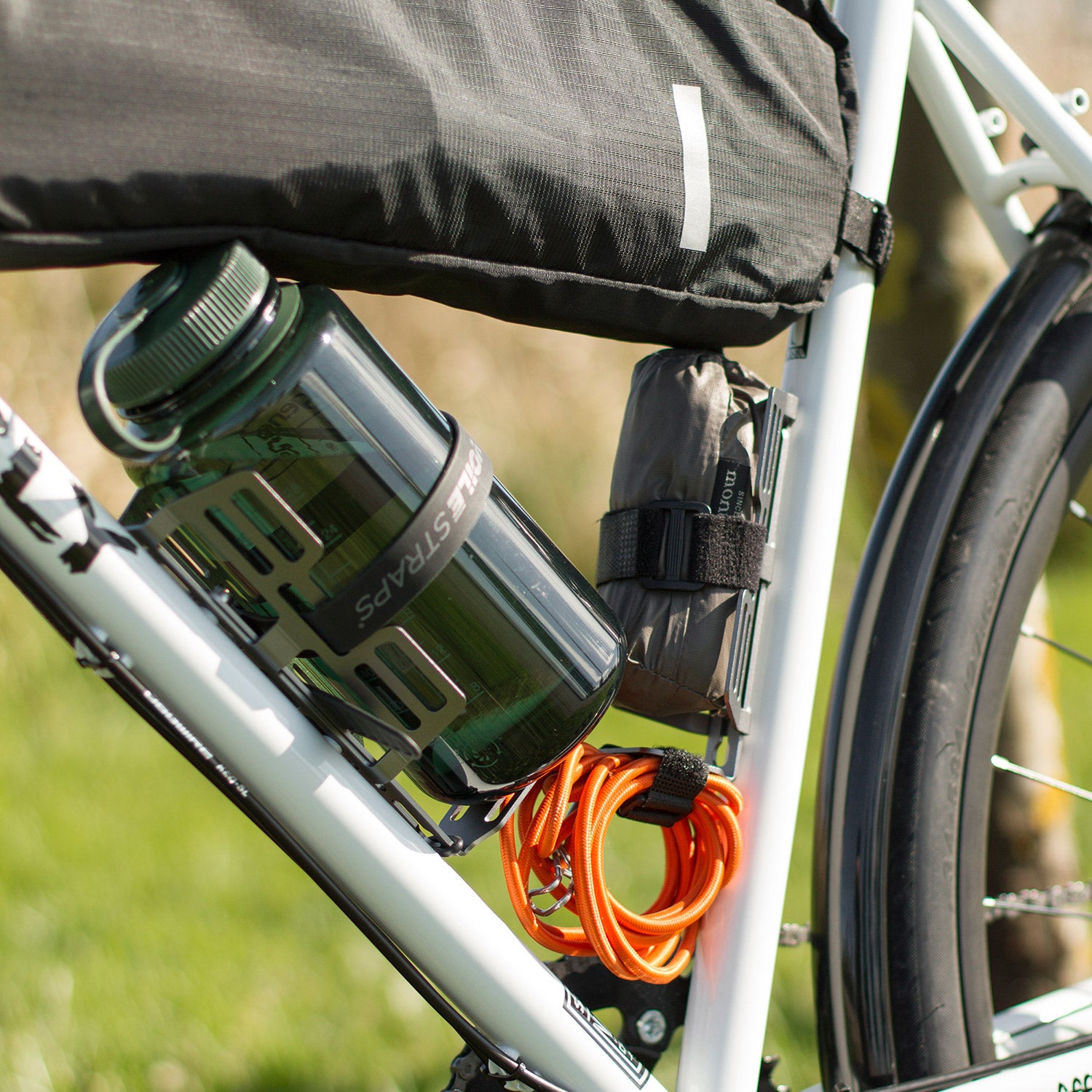

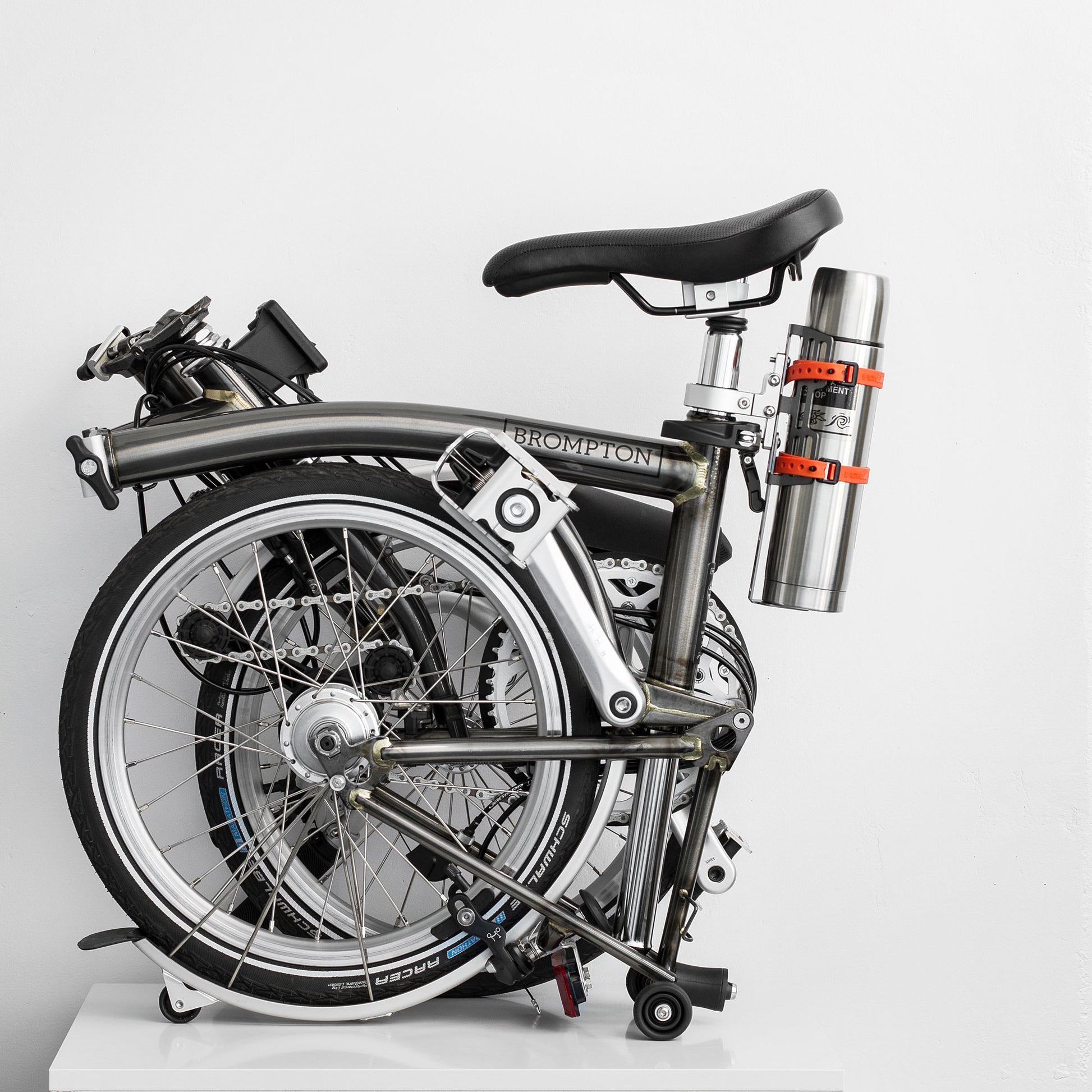

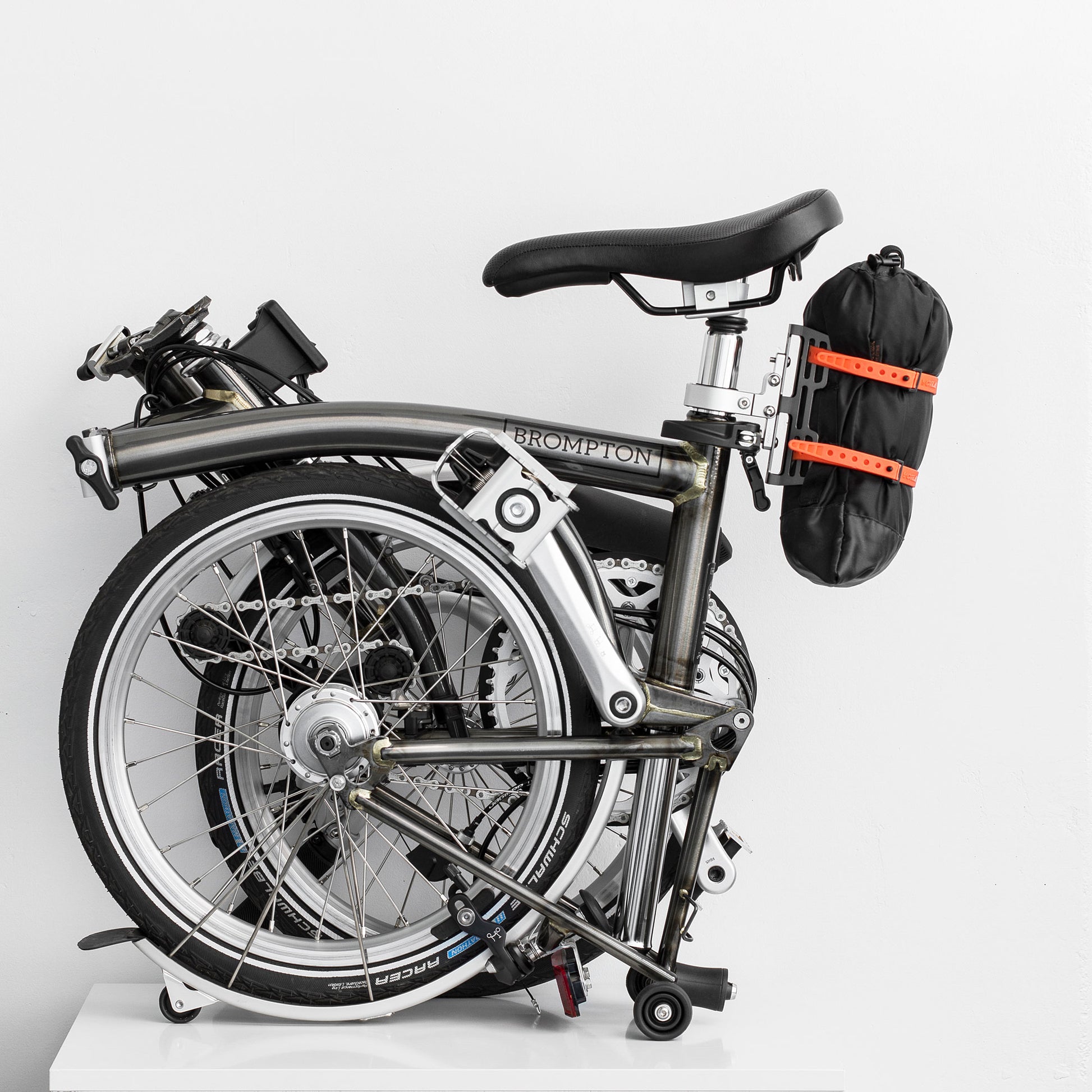

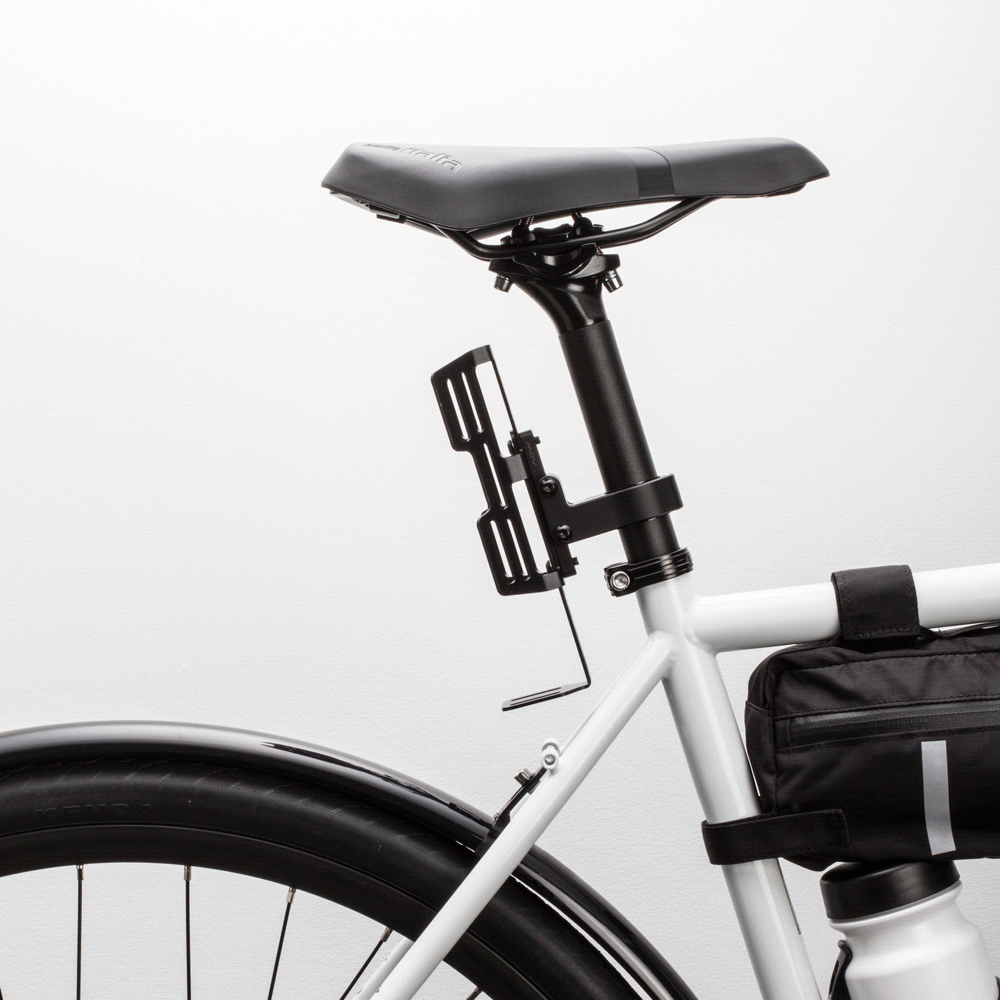

Rack and bracket can be installed in different arrangements to fit in available space and attachments.
When securing the bracket with only one screw, install the rubber ring to the lower part to keep the bracket straight and prevent contact with the bike frame.
Set the Bottom-Line
The L-bracket helps prevent the attachment from dropping and can also limit its lowest position to prevent it from scratching the bike frame or getting too close to moving parts when setting up.
