MultiAngle Mount Set

MultiAngle Mount Set

The Multi-Angle Mount set is designed to mount the water bottle further away from the seat post and provides five different mounting orientations, allowing users to store and access the water bottle at a preferred angle.

  • The optional Dual-Holders can be added to double the capacity.

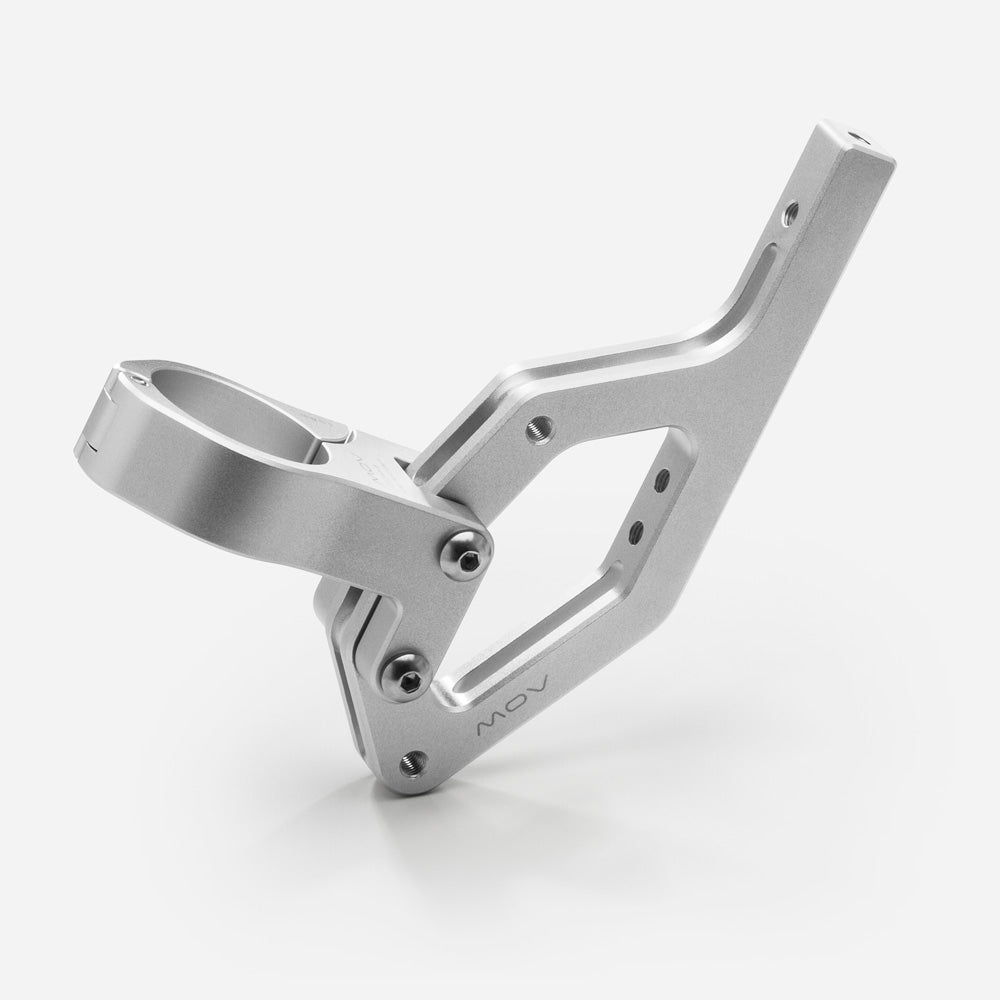

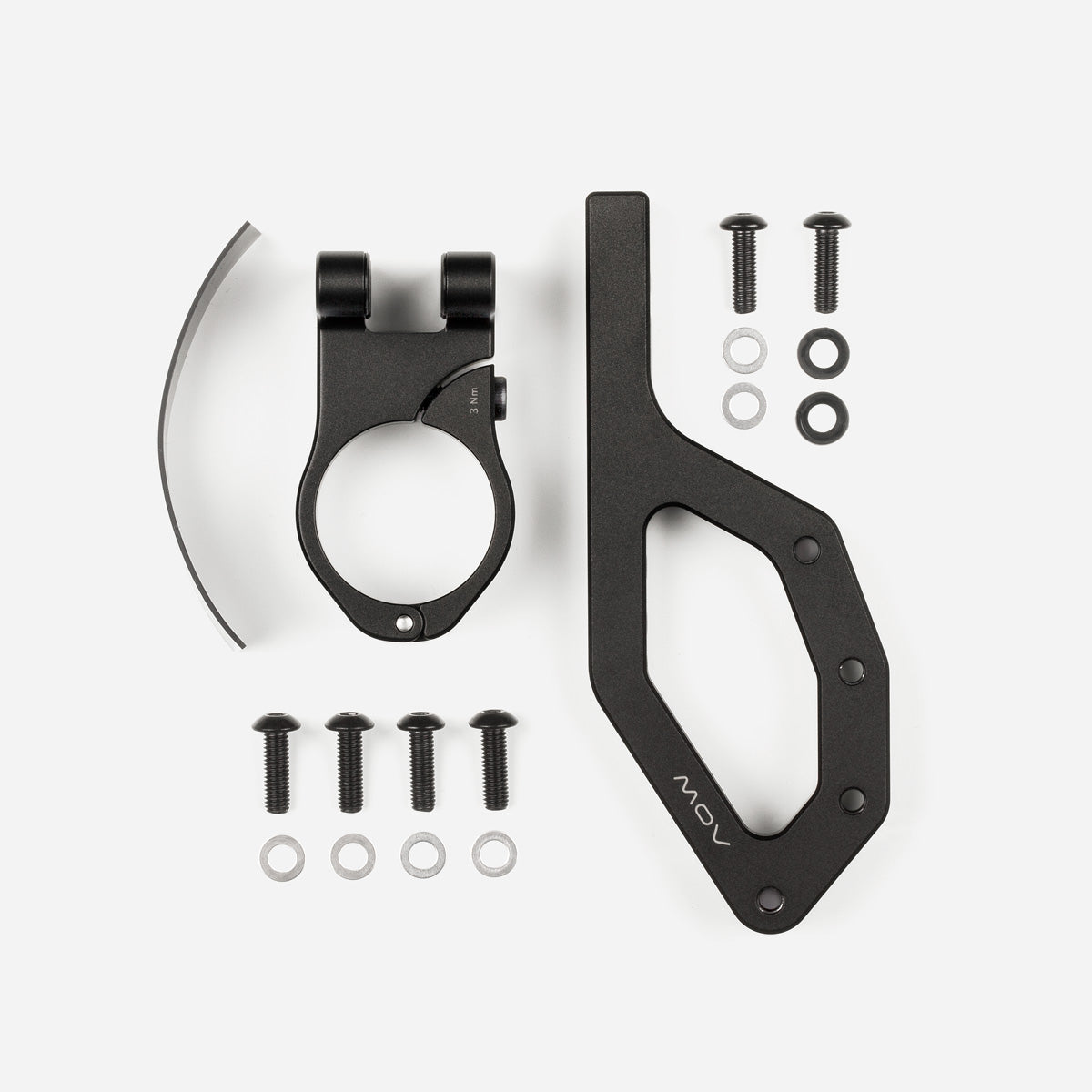

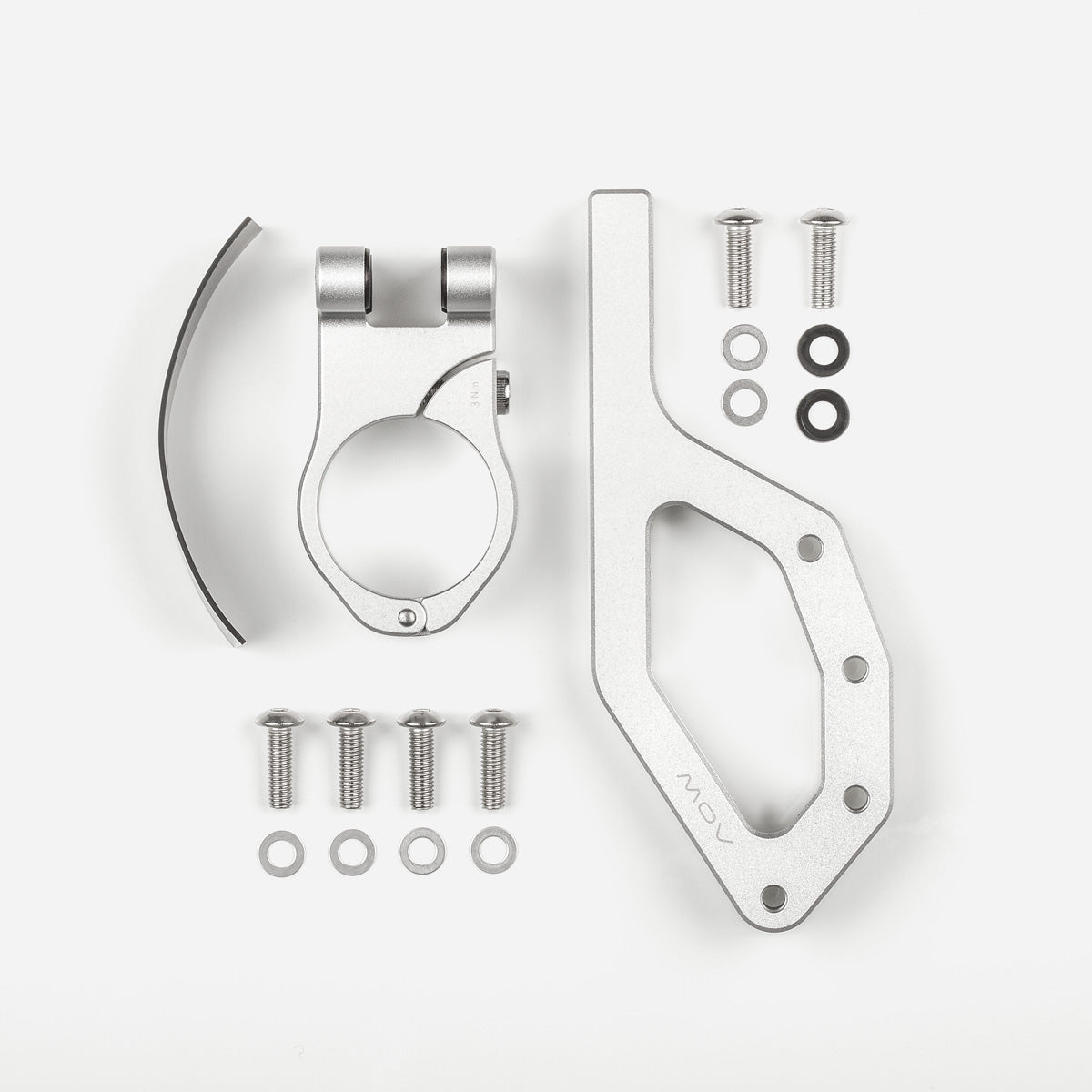

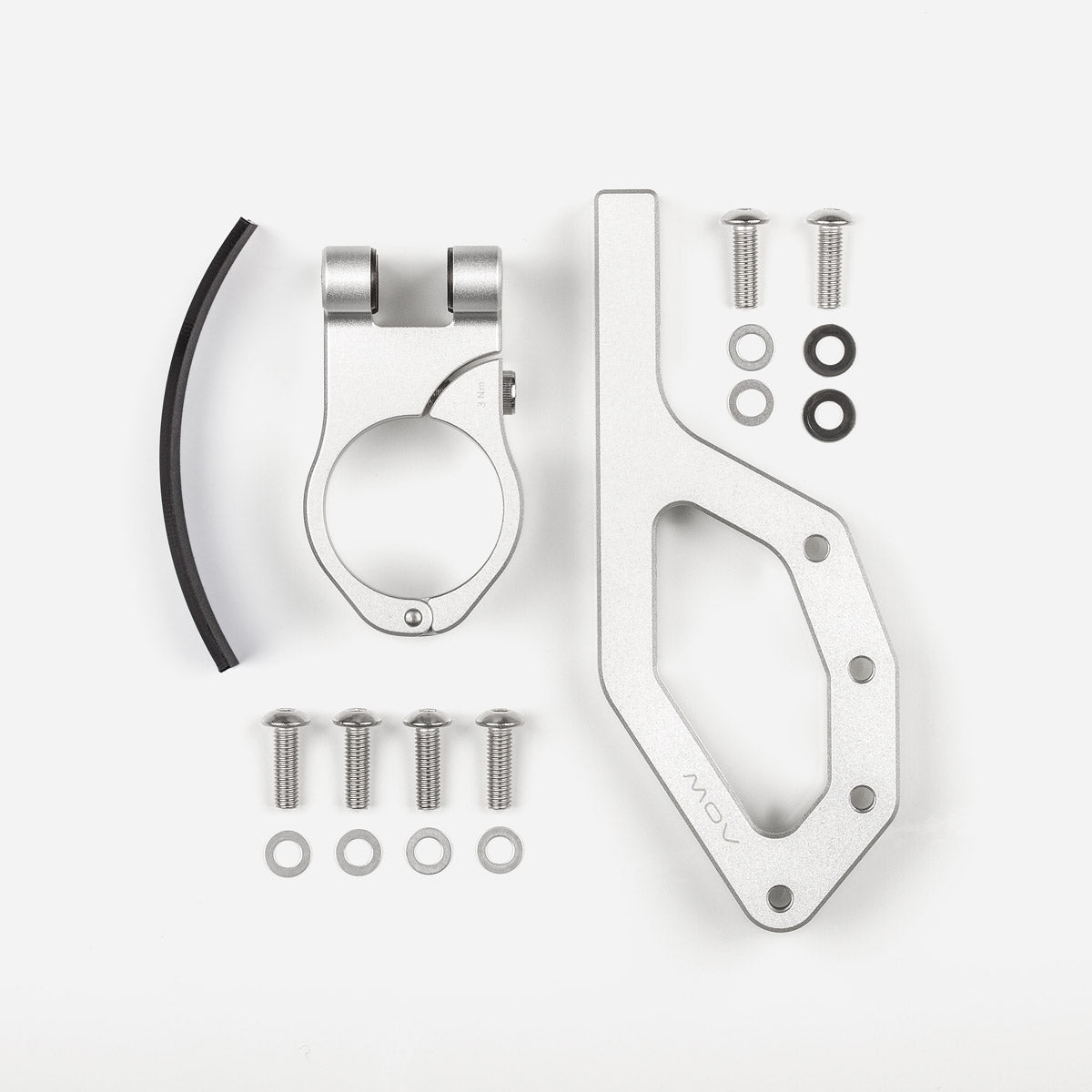

  • The set includes the BASE Clamp, MultiAngle Mount, and locking hardware. Will fit bikes with 27.0, 27.2, 30.9, 31.6, and 31.8 mm round seat posts.

Now comes with an improved rubber pad for faster installation and repositioning.

Colour: Silver
Seatpost Size
$90.00 CAD
$90.00 CAD
Sale Out of stock
Shipping calculated at checkout.

Material

Anodized aluminum parts, nylon bushings, TPU rubber pad, S.S. screws, S.S. & nylon washers

Weight

166 g / set with 27.2 BASE Clamp
169 g / set with 31.6/8 BASE Clamp

User Guide & Product Care
*The set comes with 3 and 4 mm hex keys

View full details

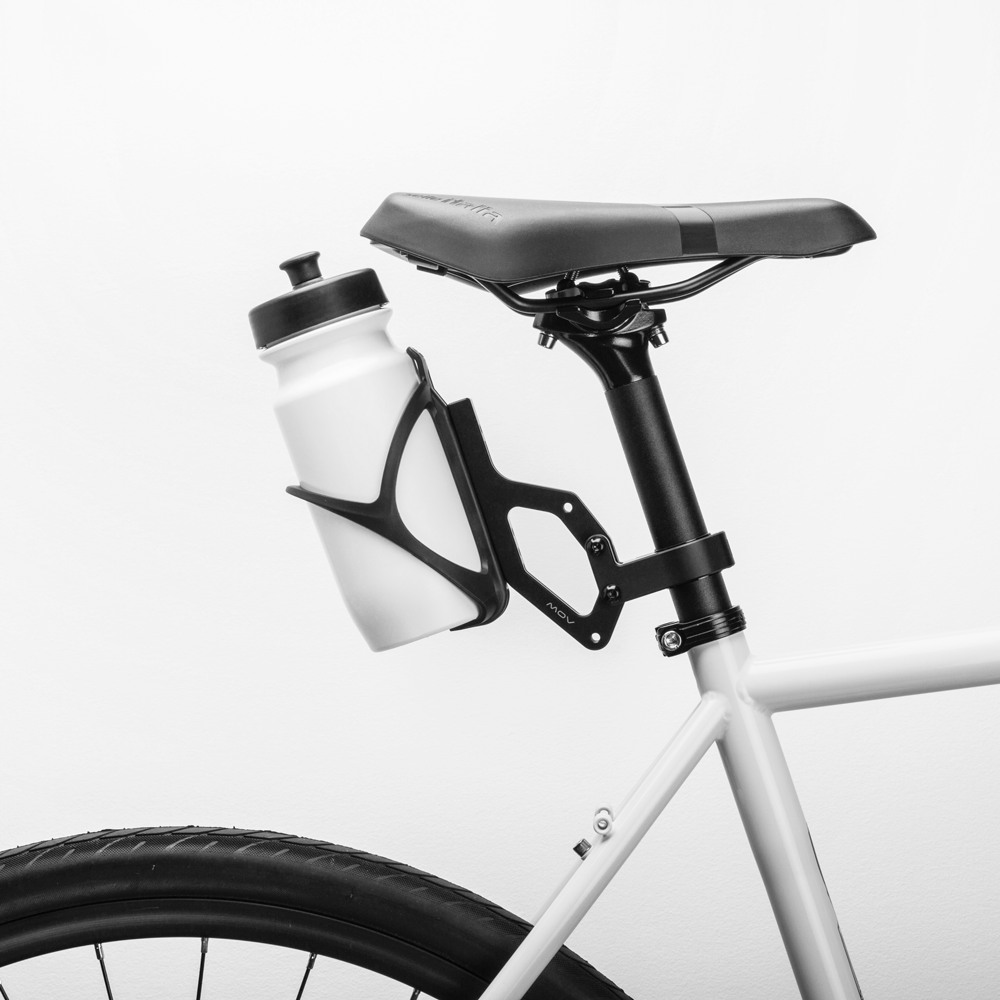

5 Basic Orientations

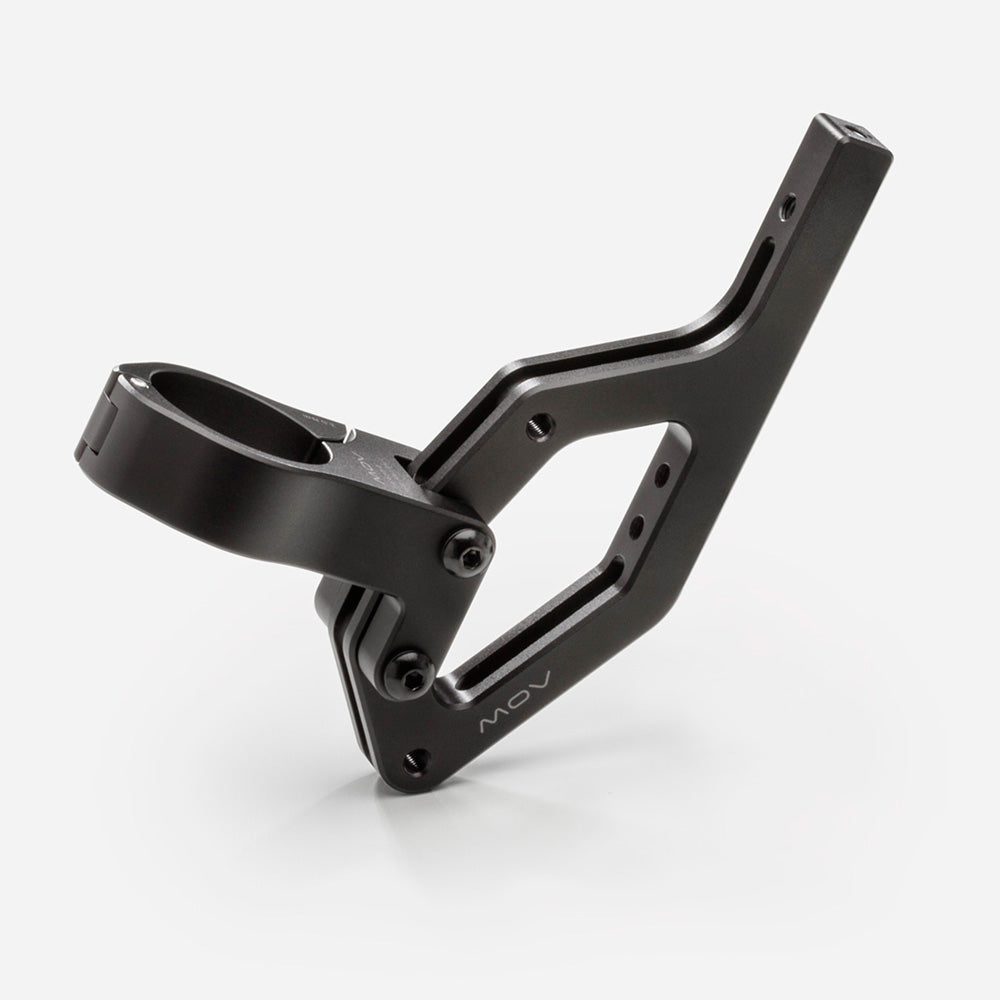

The Multi-Angle Mount can be rotated and flipped upside down to provide the perfect orientation for accessing the water bottle.

Note: Only a pair of predrilled screw holes on the narrow side of the MultiAngle Mount is for installing a bottle cage.

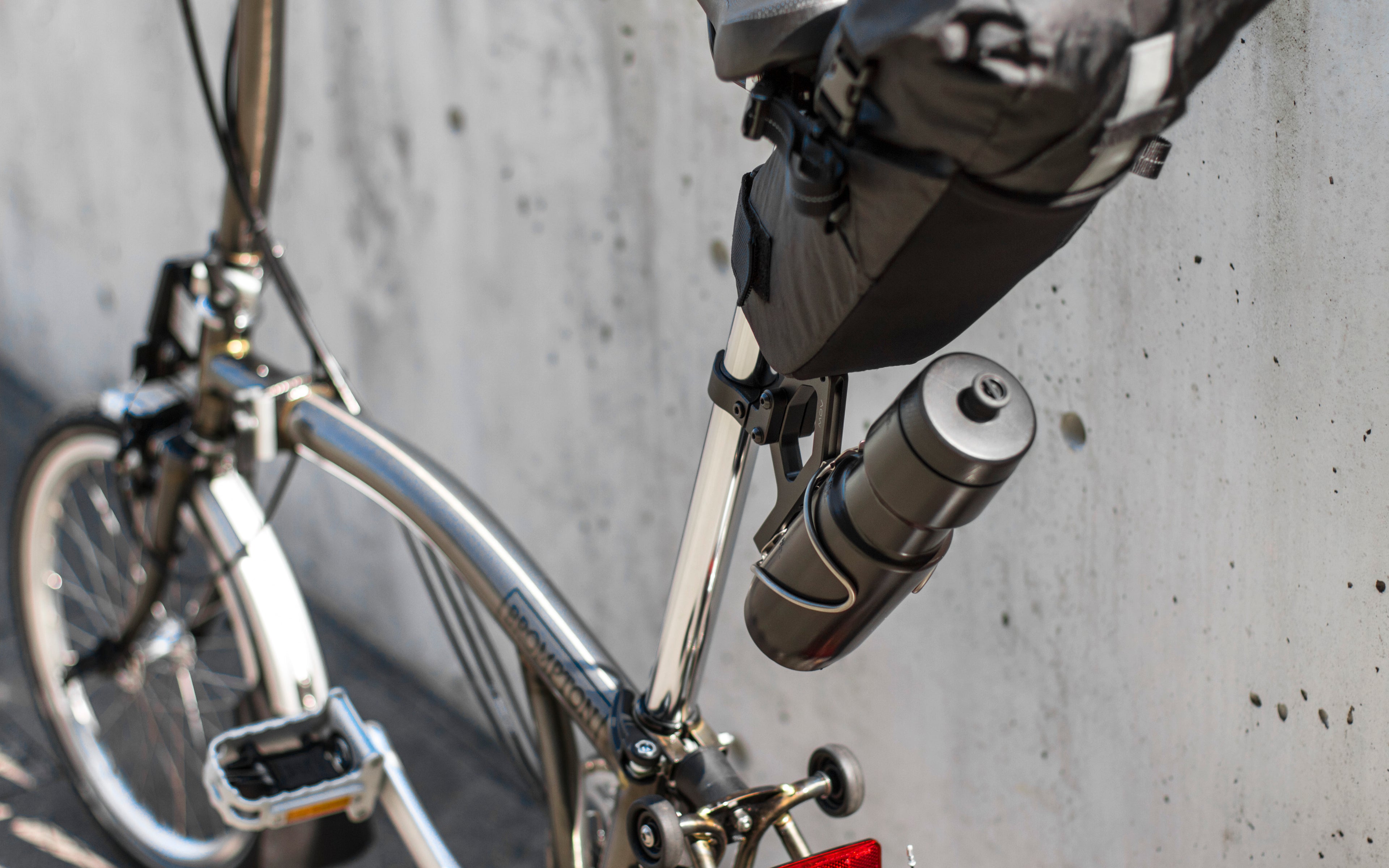

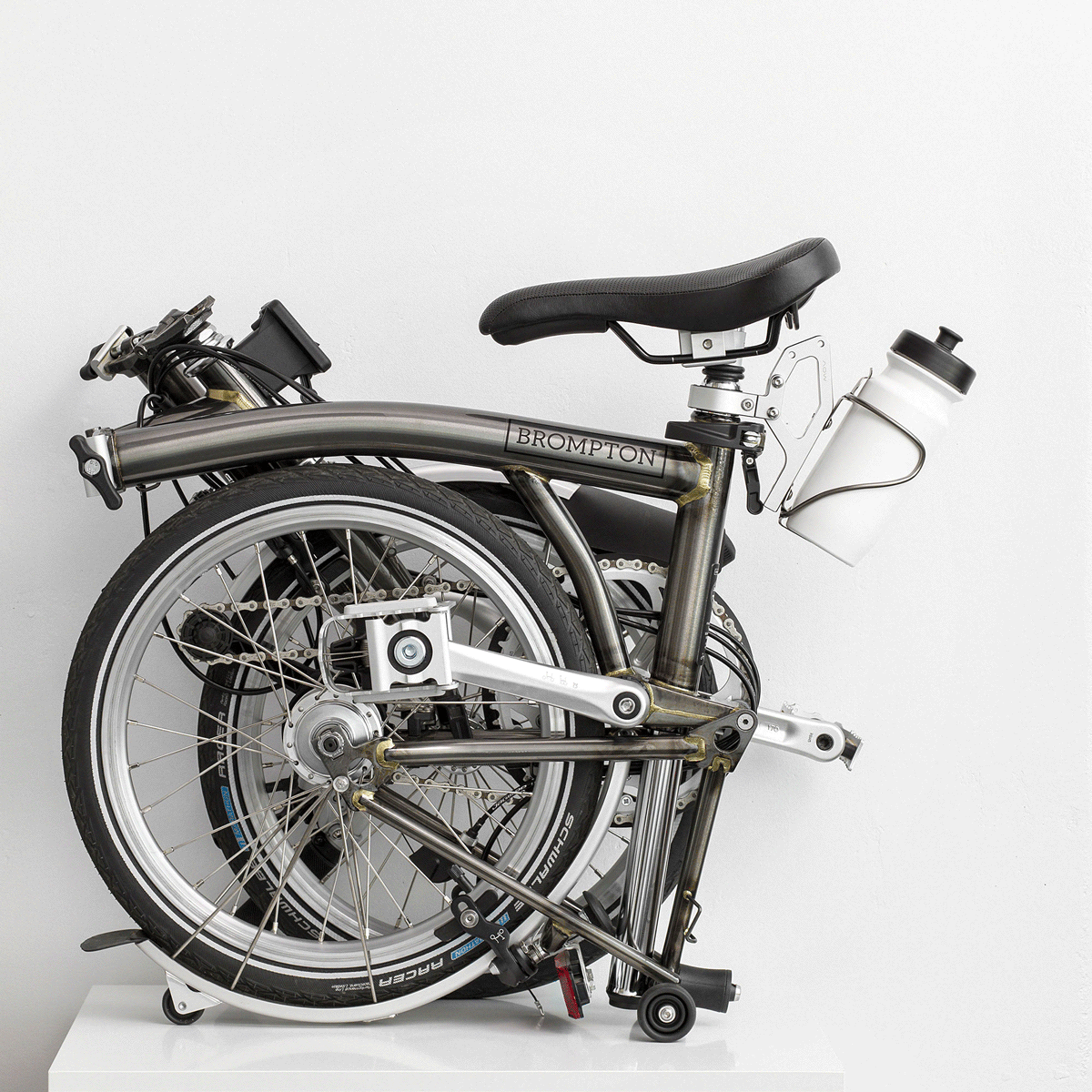

Brompton Compatible

Use with the Ø31.6/8 Base Clamp, Brompton users can enjoy the convenience of storing a large or small bottle behind the saddle at your preferred angles, before and after folding.

Of course, the mount will work with other folding and mini bikes that have a matching seatpost diameter.

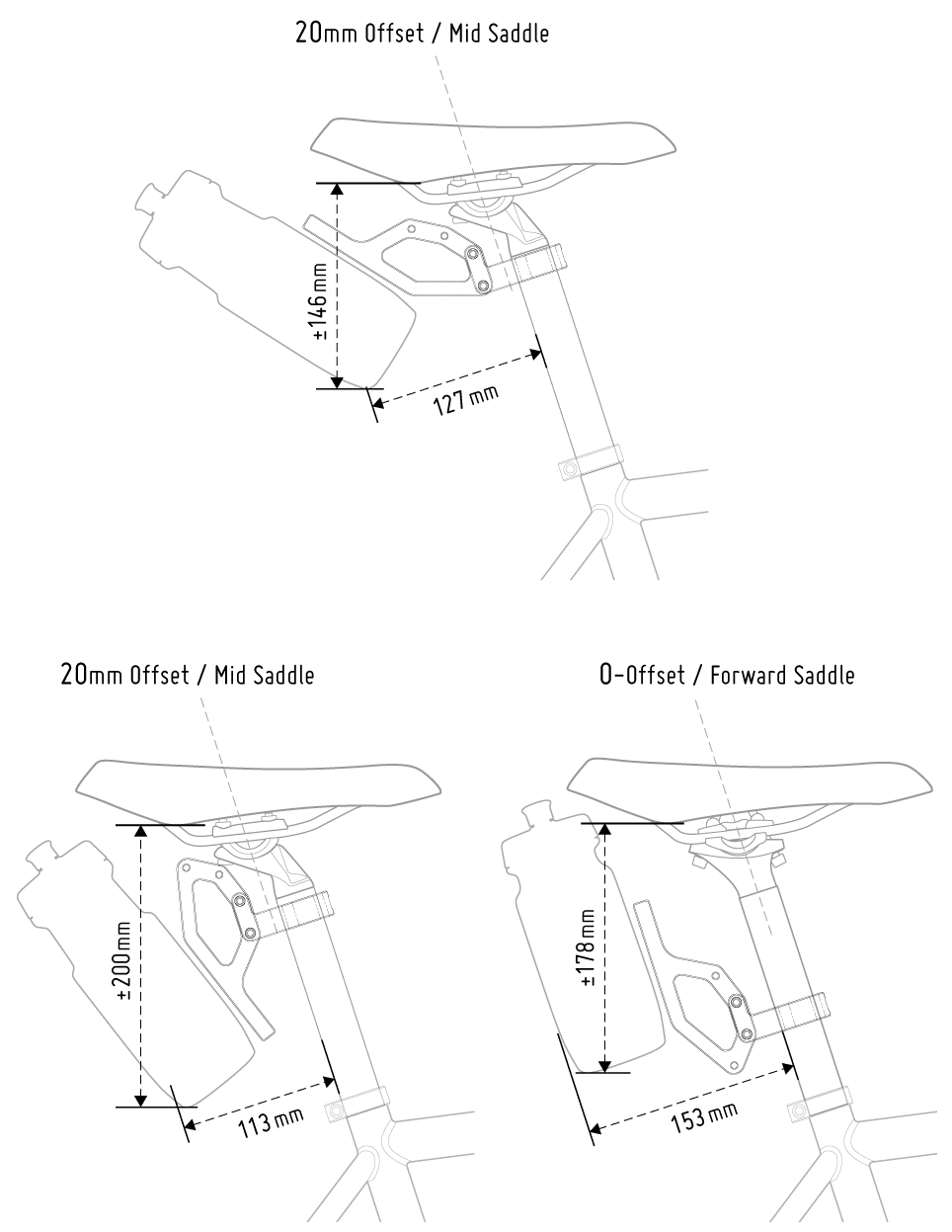

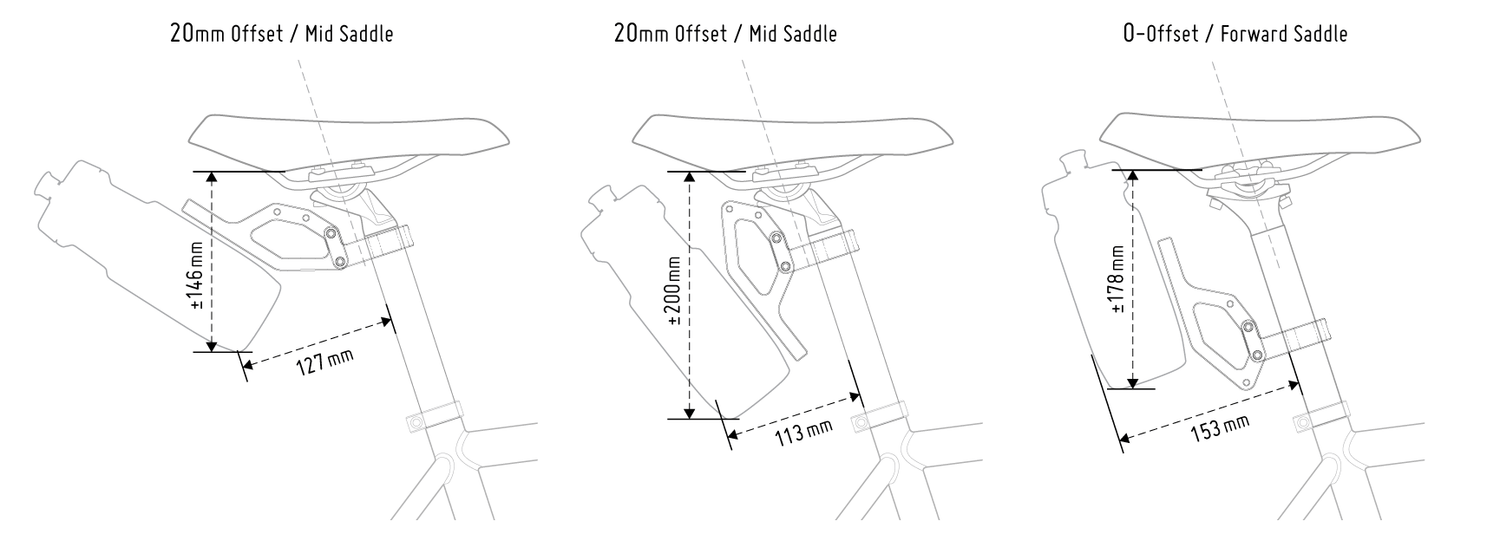

Plan beforehand

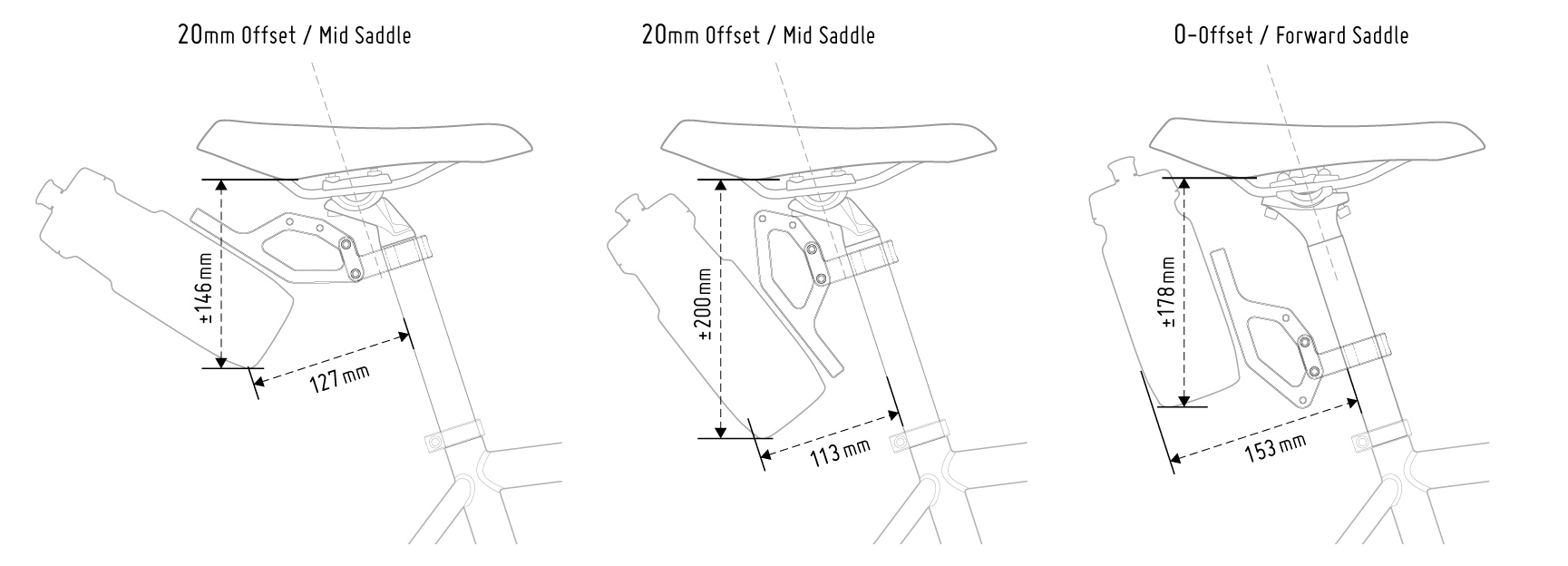

If you’re using a rear rack with a cargo bag or attachment on top of it, the diagrams will give you rough measurements of the space required for attaching one water bottle in different positions.

Plan Beforehand

If you’re using a rear rack with a cargo bag or attachment on top of it, the diagrams will give you rough measurements of the space required for attaching one water bottle in different positions.

User Guide & Product Care

Download User Guides

MultiAngle Mount Set User Guide ( PDF )

BASE Clamp User Guide ( PDF )

Screws & Washers

  • All screws have specific lengths for assembly. Please refer to the PDF user guides.
  • Metal washers protect the aluminum surface from scratching, so keep them in place if possible. The metal washer comes with the Main locking screw on the BASE Clamp is a MUST.

Tightening the screws

  • Tighten the Main screw without a torque wrench - Tighten the screw with 4 mm hex hey until the swing arm’s outer side aligns flush with the BASE unit’s outer side. The screw has reached or just exceeded 2.5 Nm at this point. Slight outward or inward alignment is acceptable.
  • When using a torque wrench - Tighten the Main screw to 2.5 Nm or up to 3 Nm for heavy loads (over 3 kg or 7 lb).
  • For all other screws, please refer to the specifications in the respective user guides.

* Do not apply grease on screws, threaded holes, or washers.

* Do not skip the metal washer on the 22mm long Main locking screw on the BASE Clamp.

BASE Clamp installation, positioning & alignment

  • When installing, align the ends of the rubber pad to the opening of the BASE unit and the swing arm tip. See details on BASE Clamp product page or download the PDF user guide.

* Realign the seat post and saddle if your bike has dropped and rotated.

  • If the mounting hardware is slightly off-centered, unload gears, unscrew the Main screw a few turns, realign the BASE Clamp, and then tighten the screw to specifications.
  • To adjust the mounting position, unload all attachments, detach the BASE Clamp and rubber pad, realign BASE Clamp and rubber pad, tighten the screw to specifications.

Bikes with rear suspension, suspension seat post, etc

If used on bikes with rear suspension, a suspension seat post, a height-adjustable seat post, or an angle-adjustable saddle, make sure there will be enough clearance in all settings for your mounting kit and the carry-ons.

Basic maintenance

  • Keep the rubber pad clean and dry. Clean the contact area on seat post before attaching the BASE Clamp.
  • Remove debris from screw holes on the MultiAngle Mount before reassembly. Use soapy water and a cotton bud if needed.
