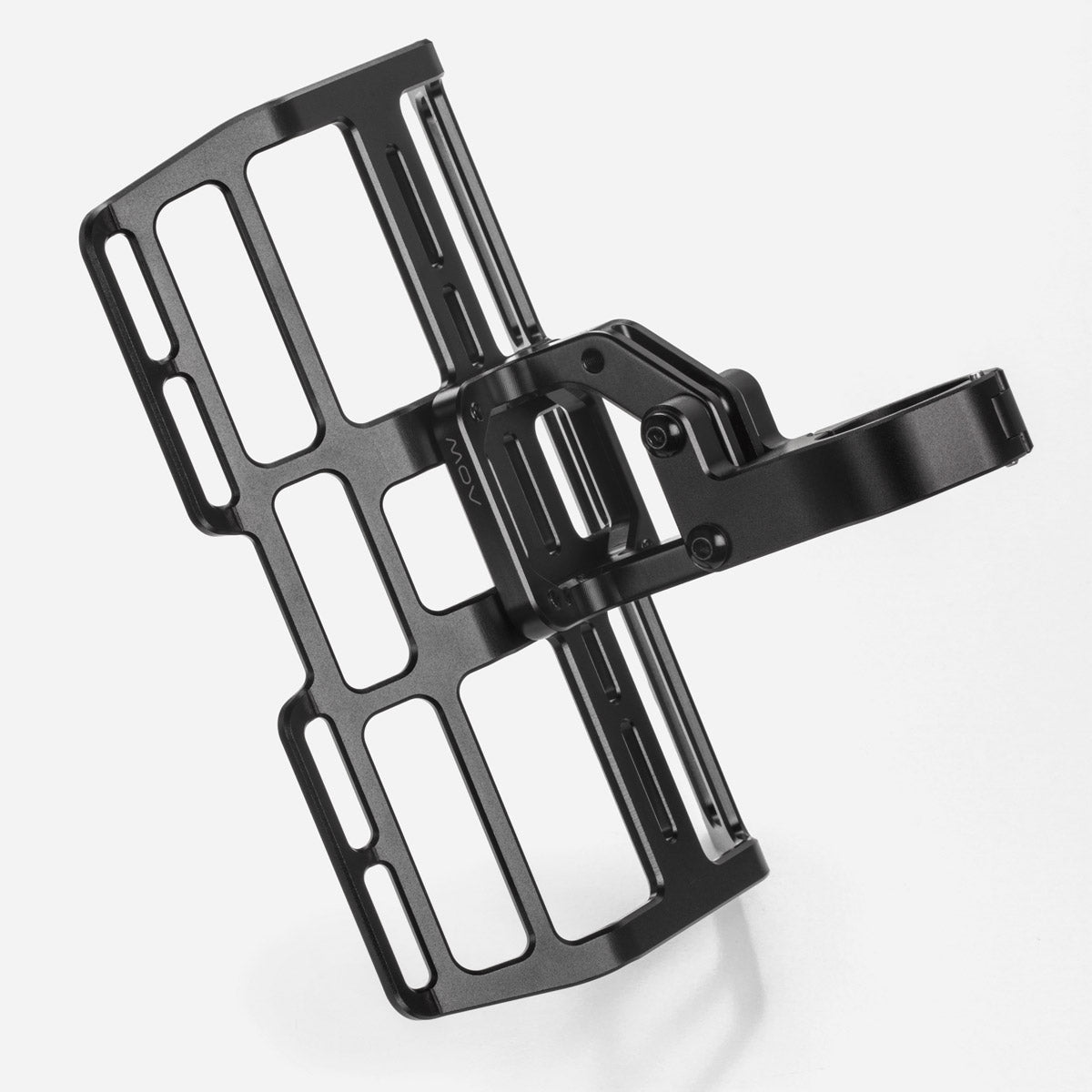

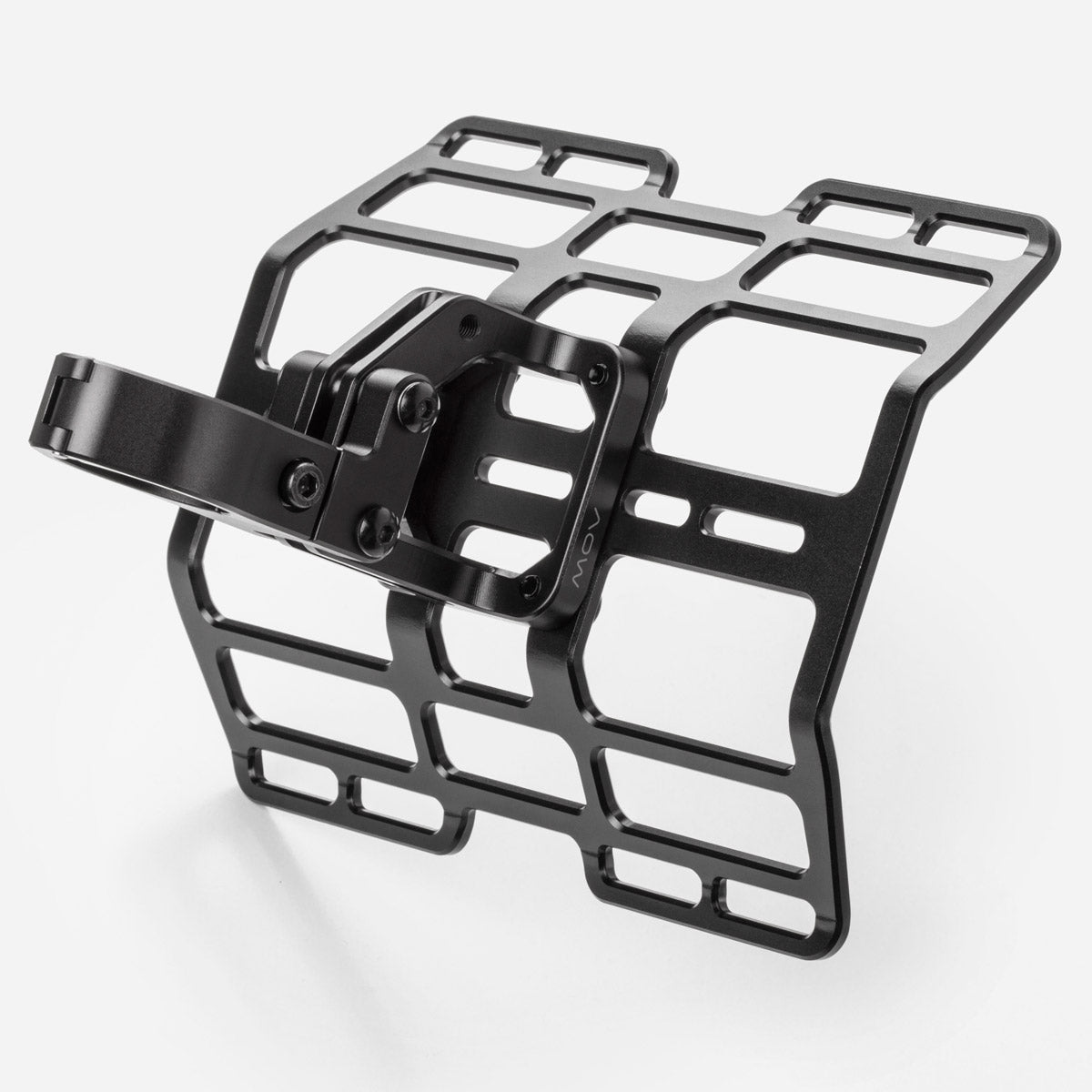

Packer Rack Set

Packer Rack Set

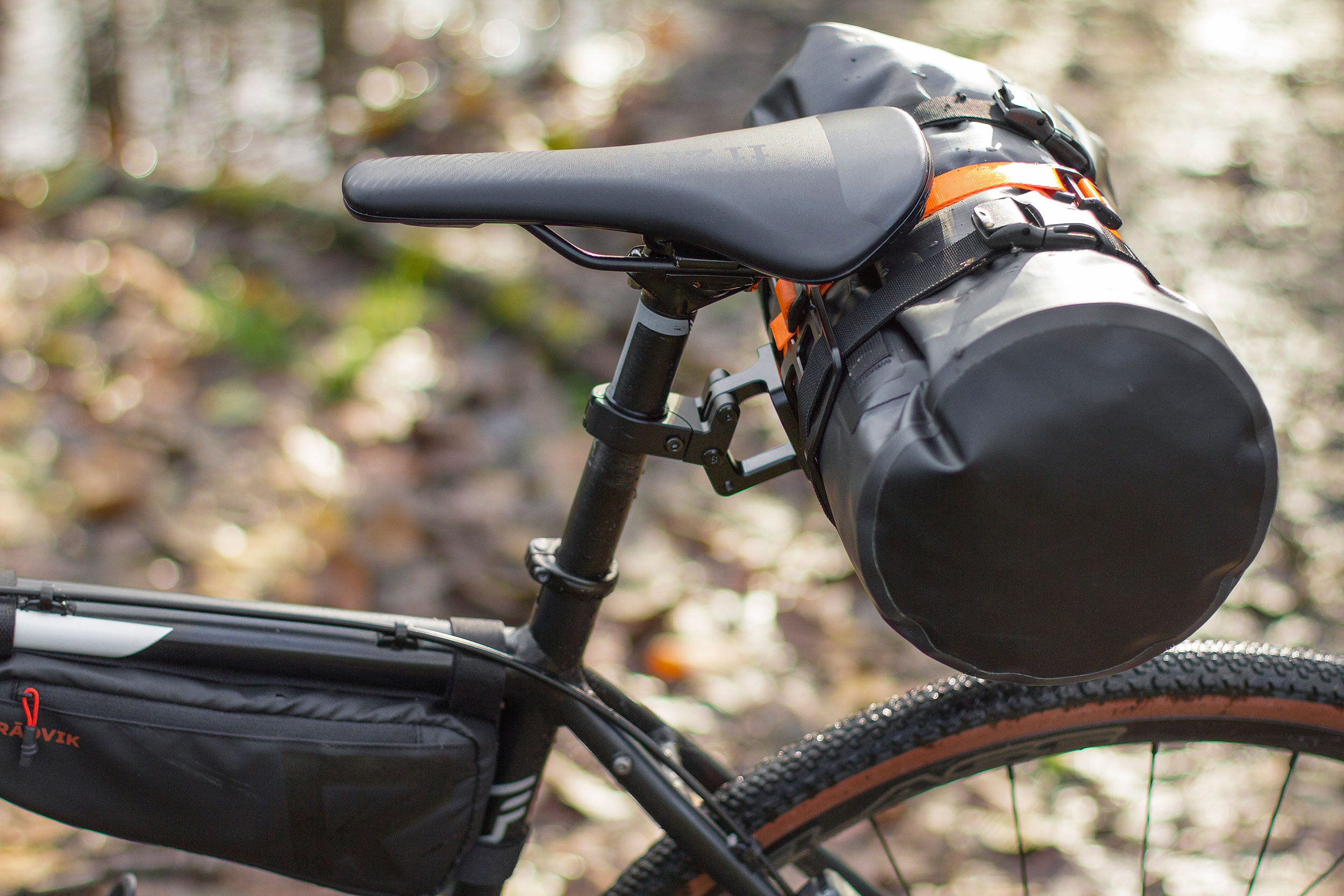

Designed for bikepackers and all riders, the Packer Rack set provides an alternative mounting point for dry bags, stuff sacks, backpacks, handlebar bags, or other items on the seatpost, utilizing tension or nylon straps.

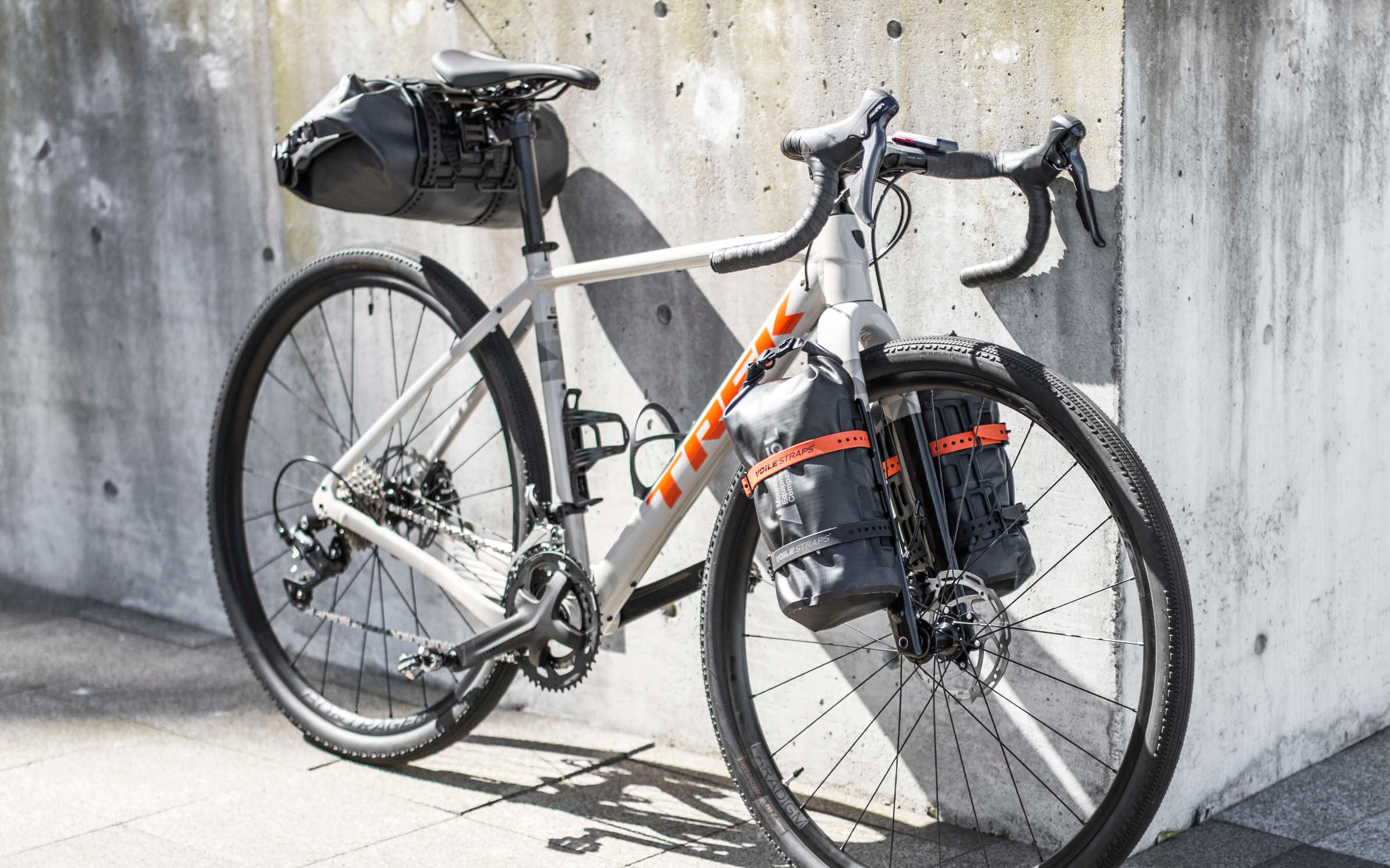

When not used on the seatpost, the Packer Rack can be mounted directly on bike forks with three or two M5 screws, just like other cargo cages on the market.

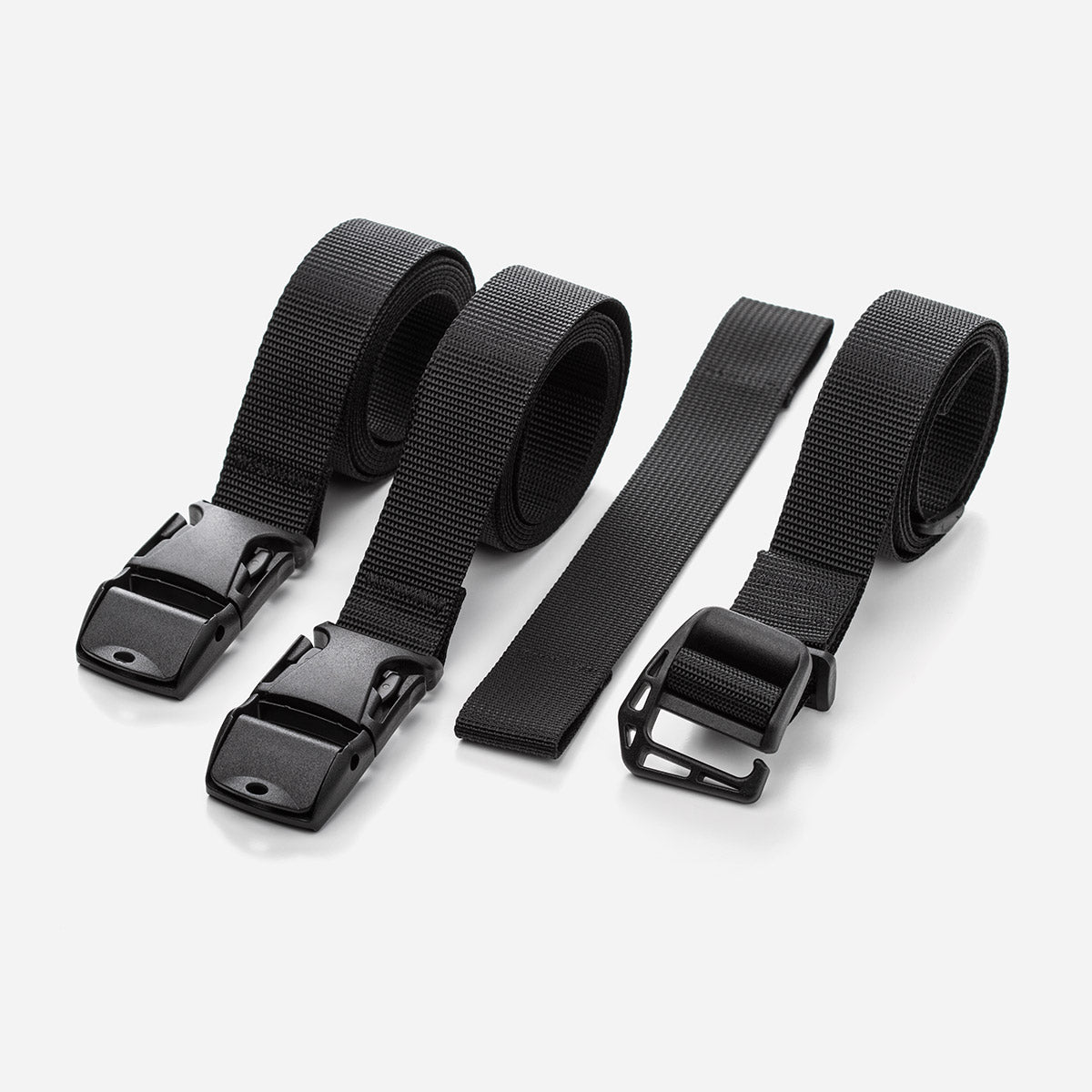

* Packer Rack Set will come with a Nylon Strap Kit.
$160.00 CAD
$160.00 CAD
Sale Out of stock
Shipping calculated at checkout.

User Guide ( PDF )

View full details

Technical Details

Compatible Seatposts :
Ø 27.0, 27.2, 30.9, 31.6, 31.8 mm

Dimension : See diagram below

Material :
Anodized aluminum parts, S.S. screws & washers

Content & Weight :

Full Set  287 g
Packer Rack, adapter, Base Clamp, screws & washers

Nylon Strap Kit  100 g

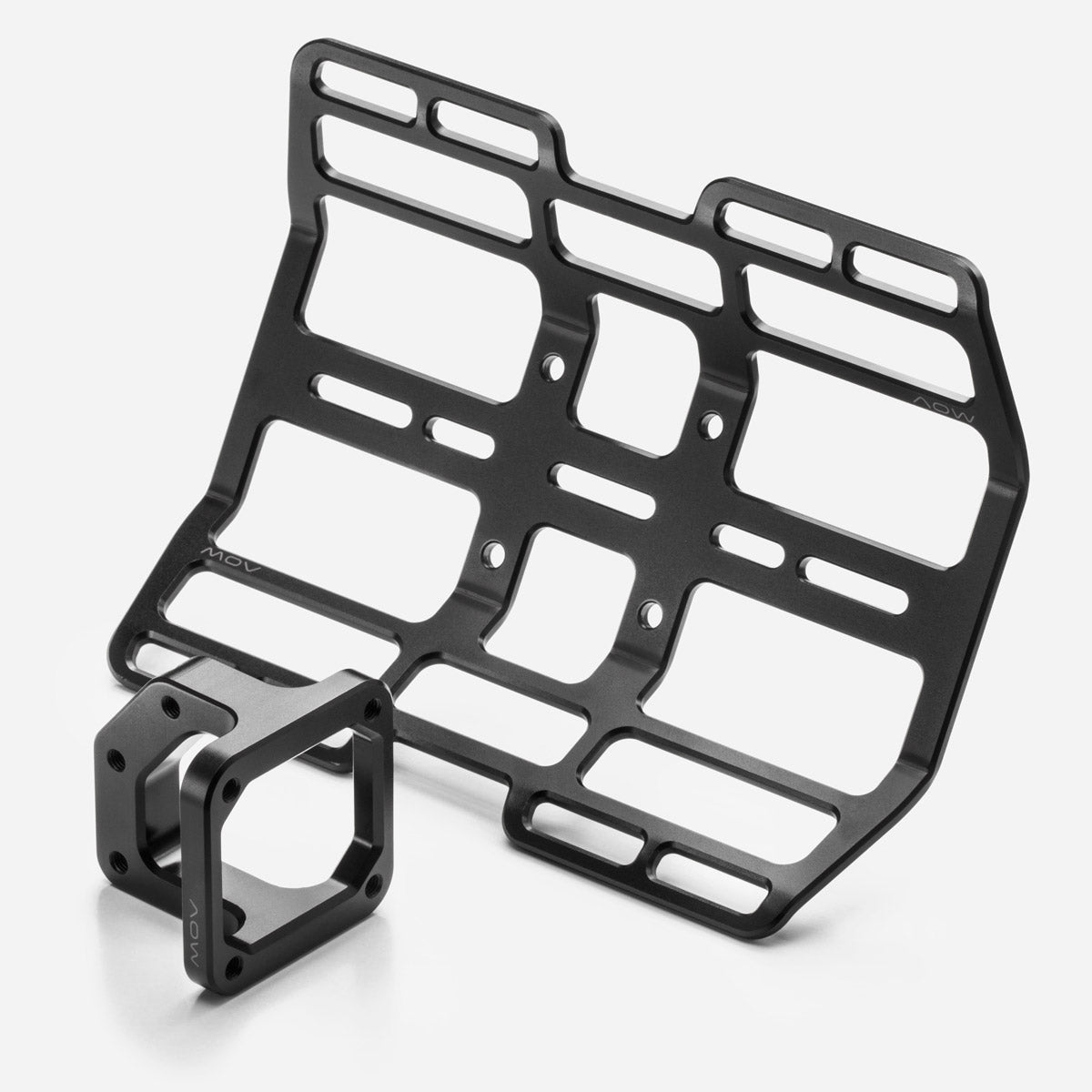

Rack + Adapter  203 g
Packer Rack, adapter, screws & washers

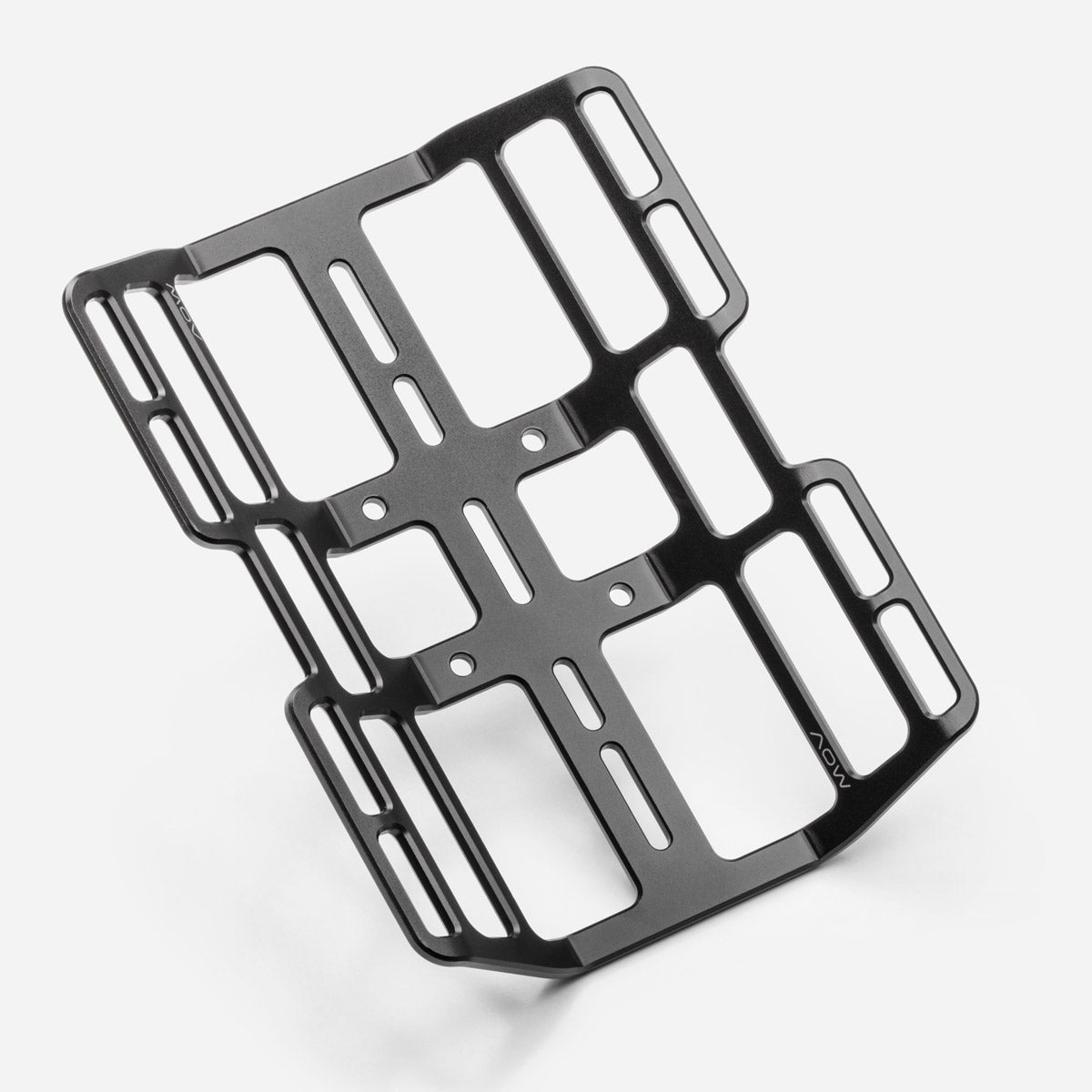

Packer Rack Only  130 g

Screw Tightening Torque :
Base Clamp main screw  3 Nm
All other screws  4 Nm

Maximum load :
•  Road  7 kg ( 15 lb )
•  Off road  4.5 kg ( 10 lb )

Suitable Bag Size :
2 to 25 L  or  Diameter up to 25 cm ( 10" )

32” straps* suitable for large bags with diameters of up to 25cm/10”

25” and 20” straps* for medium bags (up to Ø18cm/7”) and small bags (Ø14cm/5.5”).

*Tension straps sold separately

Technical Details

Compatible Seatposts :
Ø 27.0, 27.2, 30.9, 31.6, 31.8 mm

Dimension : See diagram below

Material :
Anodized aluminum parts, S.S. screws & washers

Content & Weight :

  • Full Set  287 g
    Packer Rack, adapter, Base Clamp, screws & washers
  • Nylon Strap Kit  100 g
  • Rack + Adapter  203 g
    Packer Rack, adapter, screws & washers
  • Packer Rack Only  130 g

Screw Tightening Torque :
Base Clamp main screw  3 Nm
All other screws  4 Nm

Maximum load :

  • Road  7 kg ( 15 lb )
    Off road  4.5 kg ( 10 lb )

Suitable Bag Size :
2 to 25 L  or  Diameter up to 25 cm ( 10" )

32” straps* suitable for large bags with diameters of up to 25cm/10”

25” and 20” straps* for medium bags (up to Ø18cm/7”) and small bags (Ø14cm/5.5”).

*Tension straps sold separately

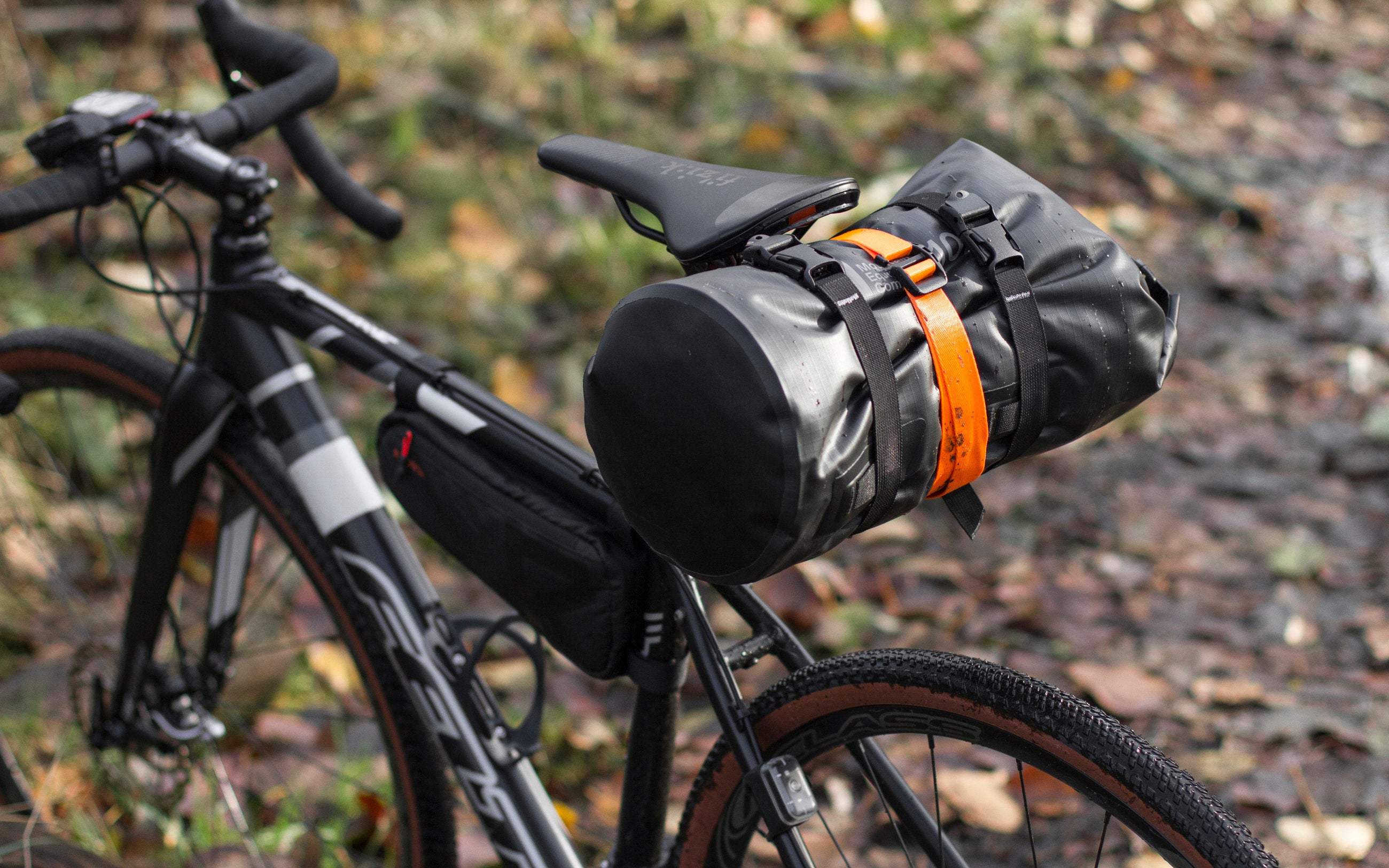

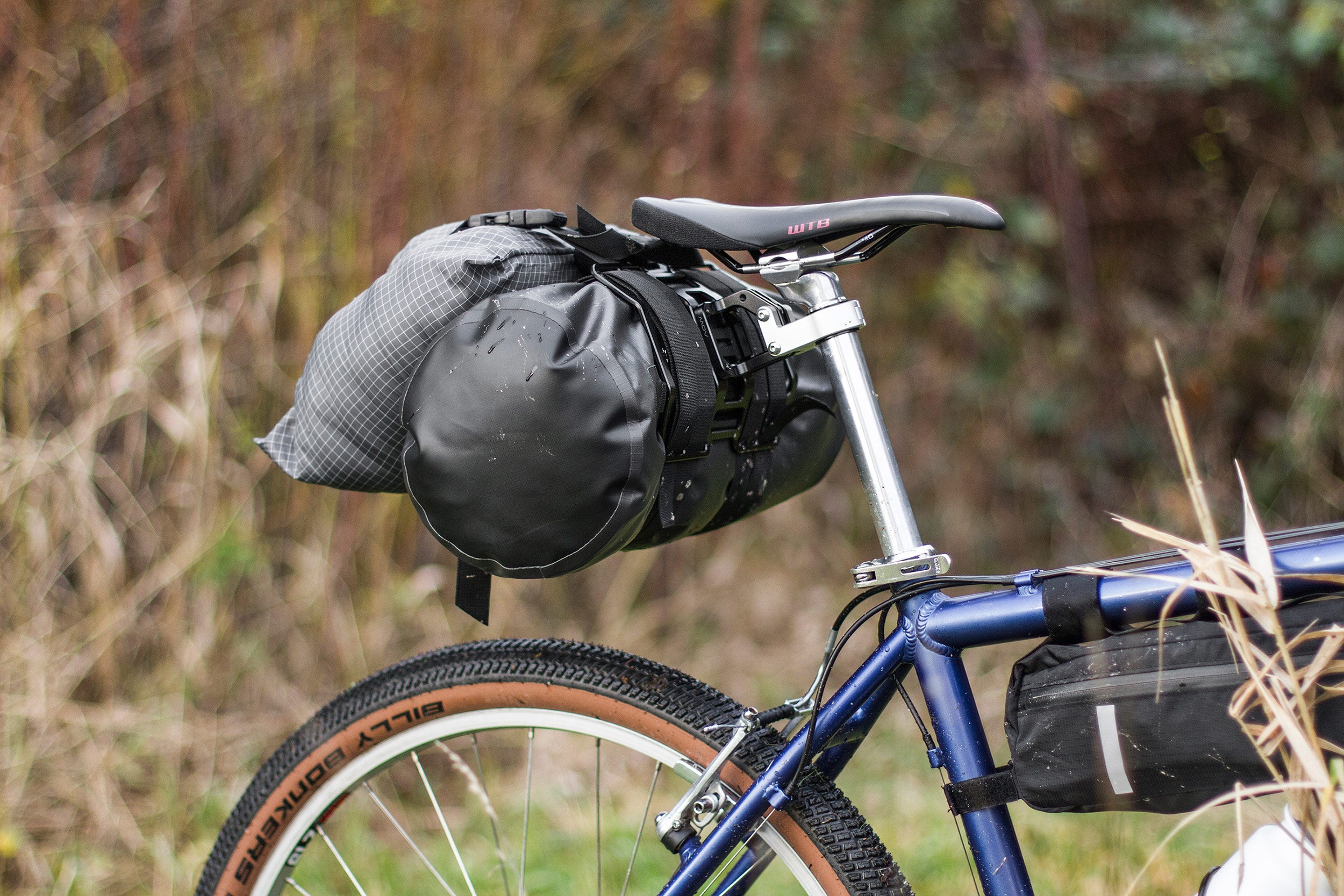

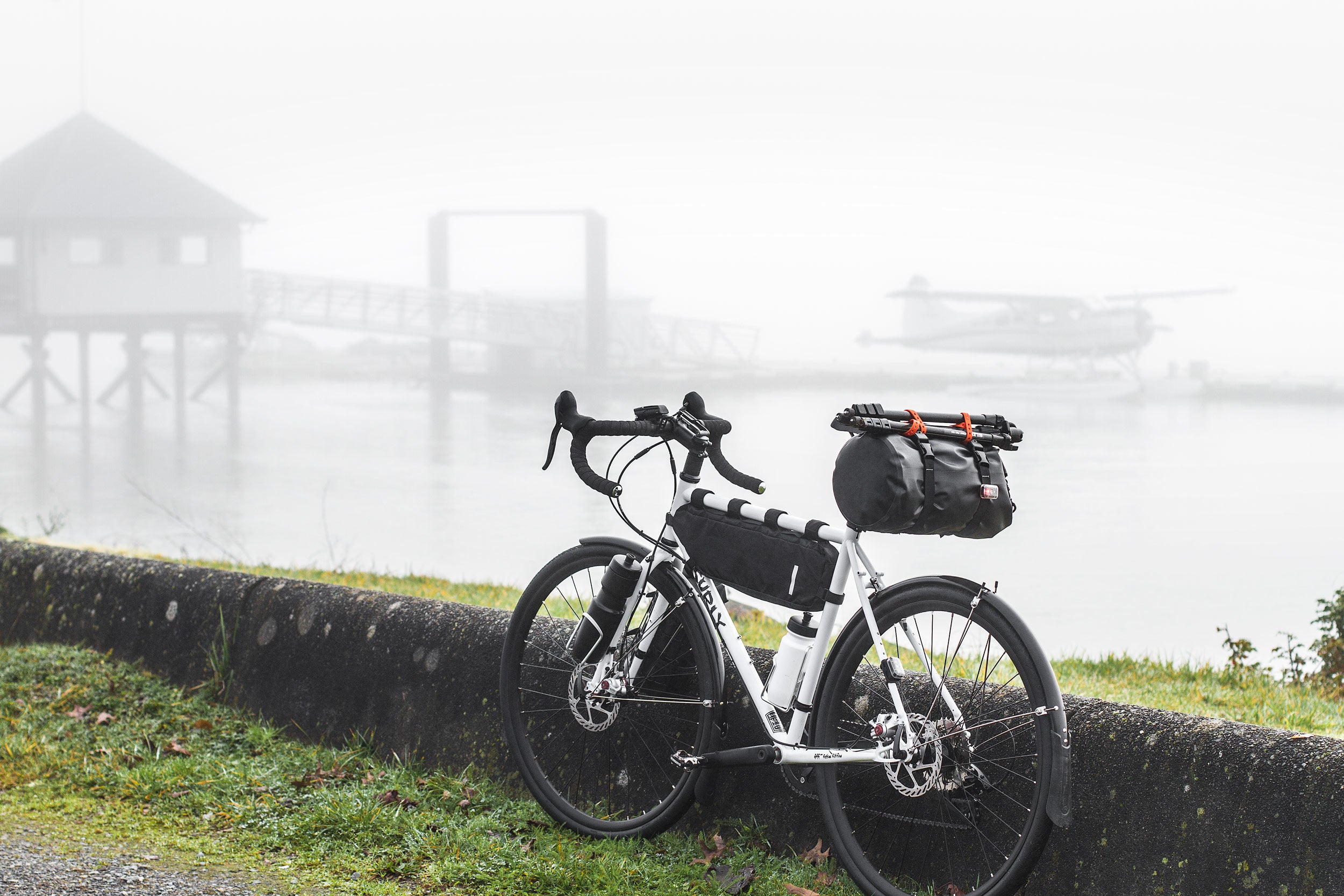

Horizontal setup

When set up horizontally, the Packer Rack can secure different types of soft bags. The acceptable size of the bag depends on the clearance above the wheel.

Need to carry a bit more? Just attach the additional item above or behind with extra straps.

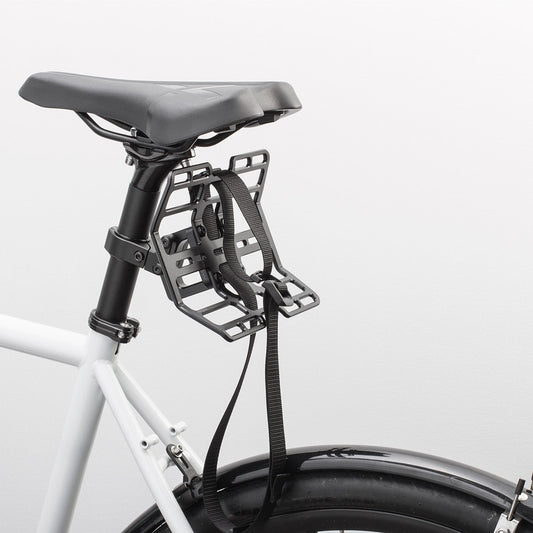

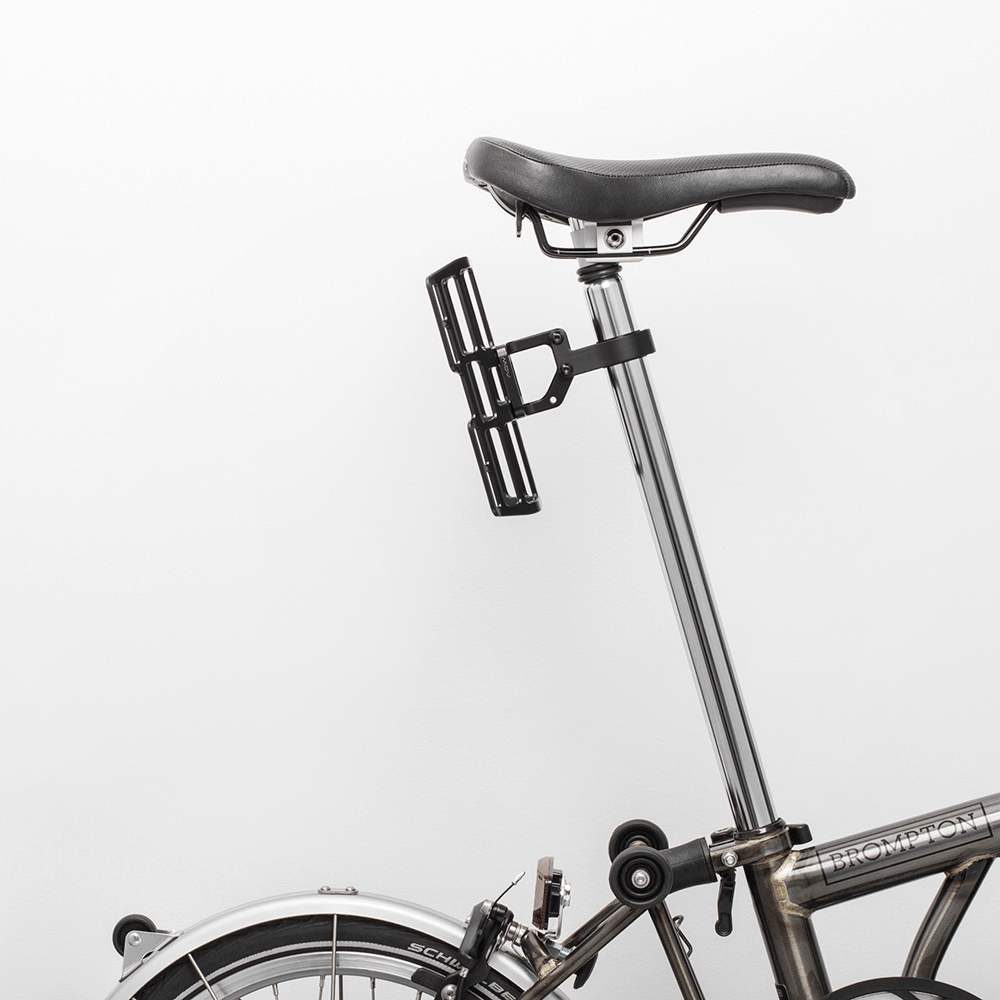

Vertical setup

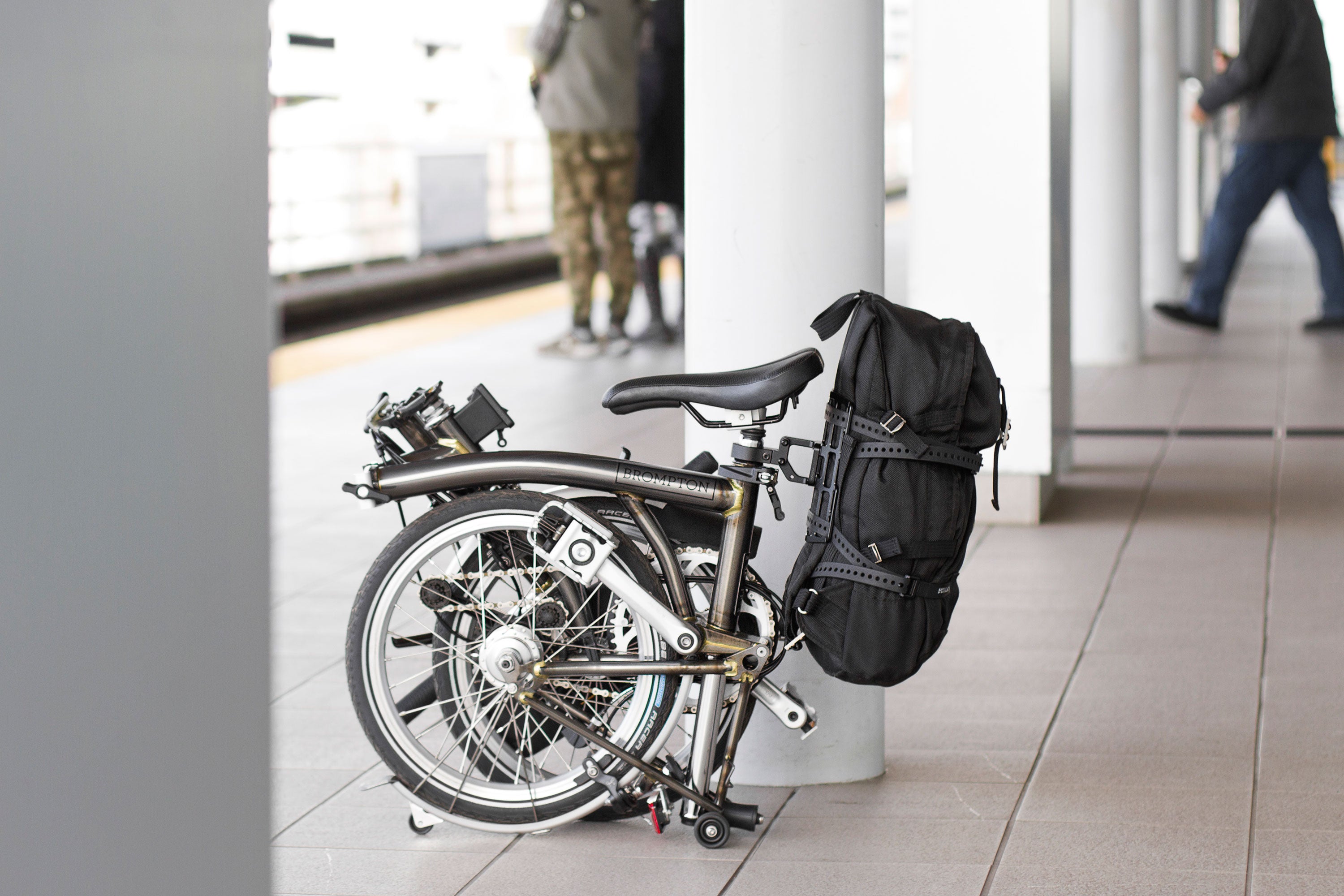

Packer Rack can be used vertically on any bike with a long exposed seatpost. It is perfect for small-wheel bikes to carry larger bags while maintaining a narrower side profile for cruising in small-town alleys or accessing public transit.

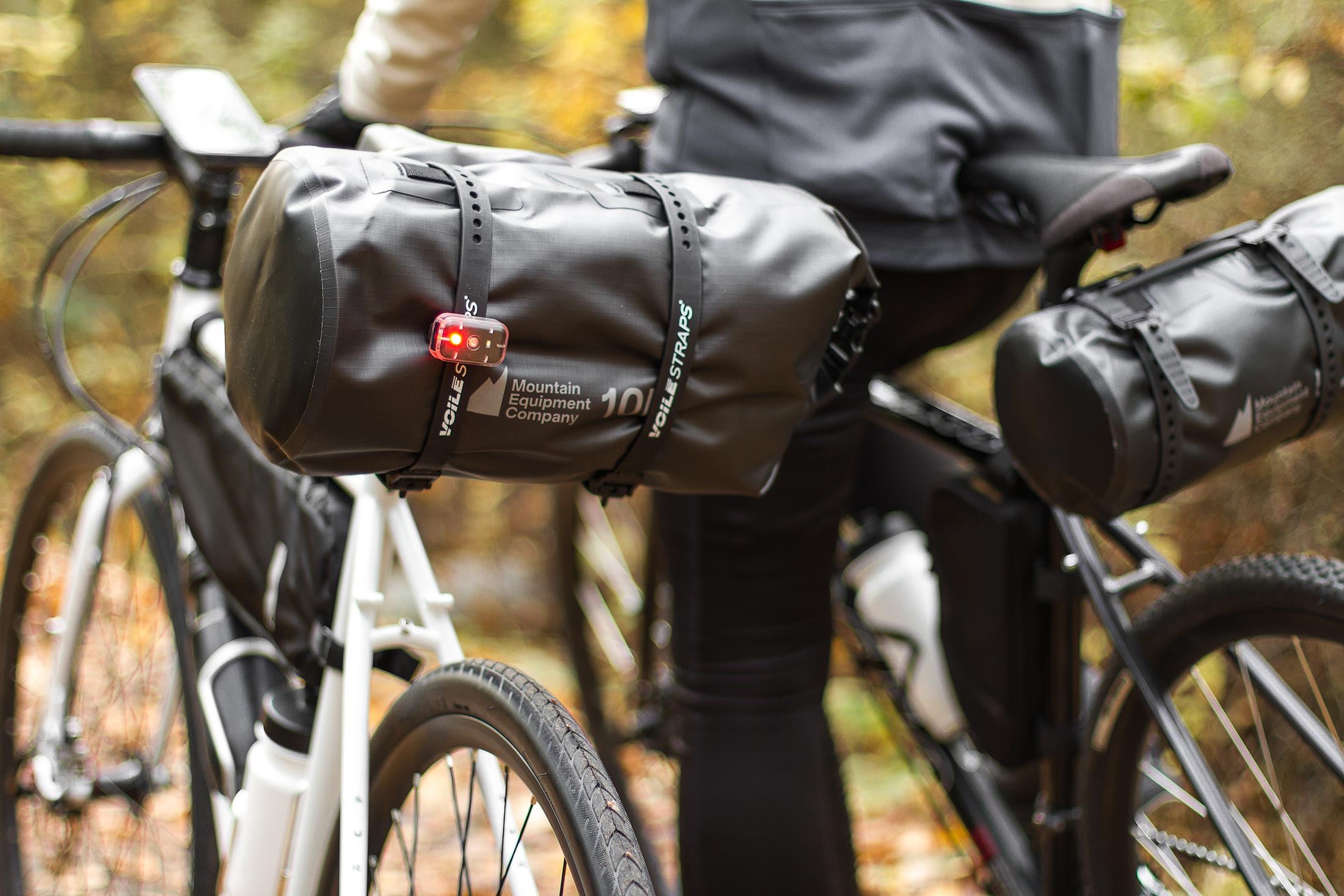

Tension straps make loading and unloading luggage quick and easy, provide better grip on smooth surfaces, and are easy to clean.

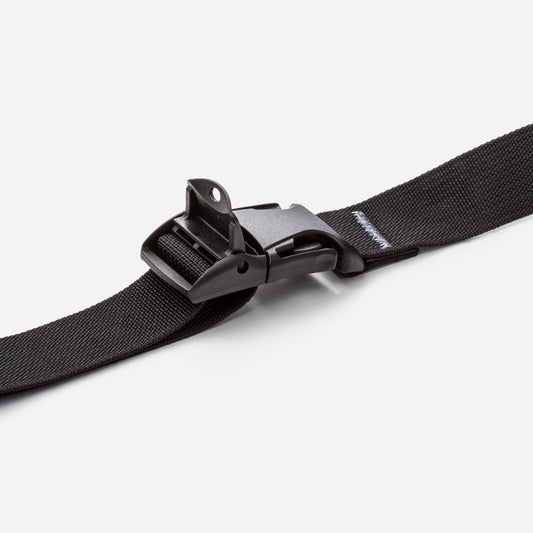

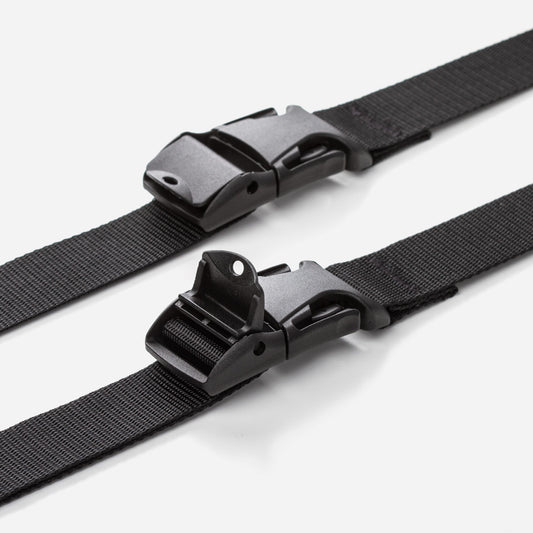

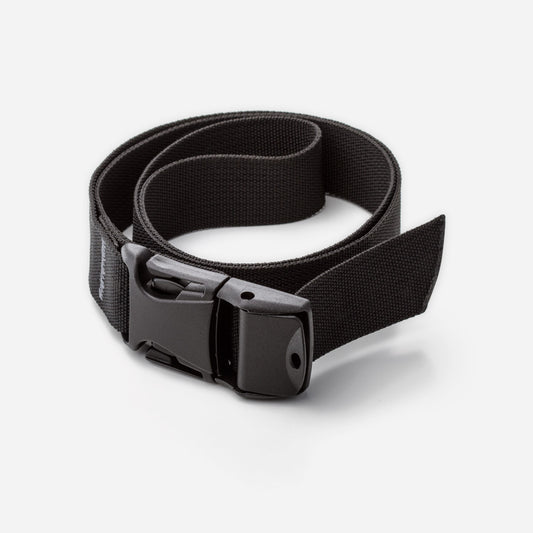

Nylon straps with locking hardware are a better choice for securing heavy and oversized items.

*Tension straps sold separately

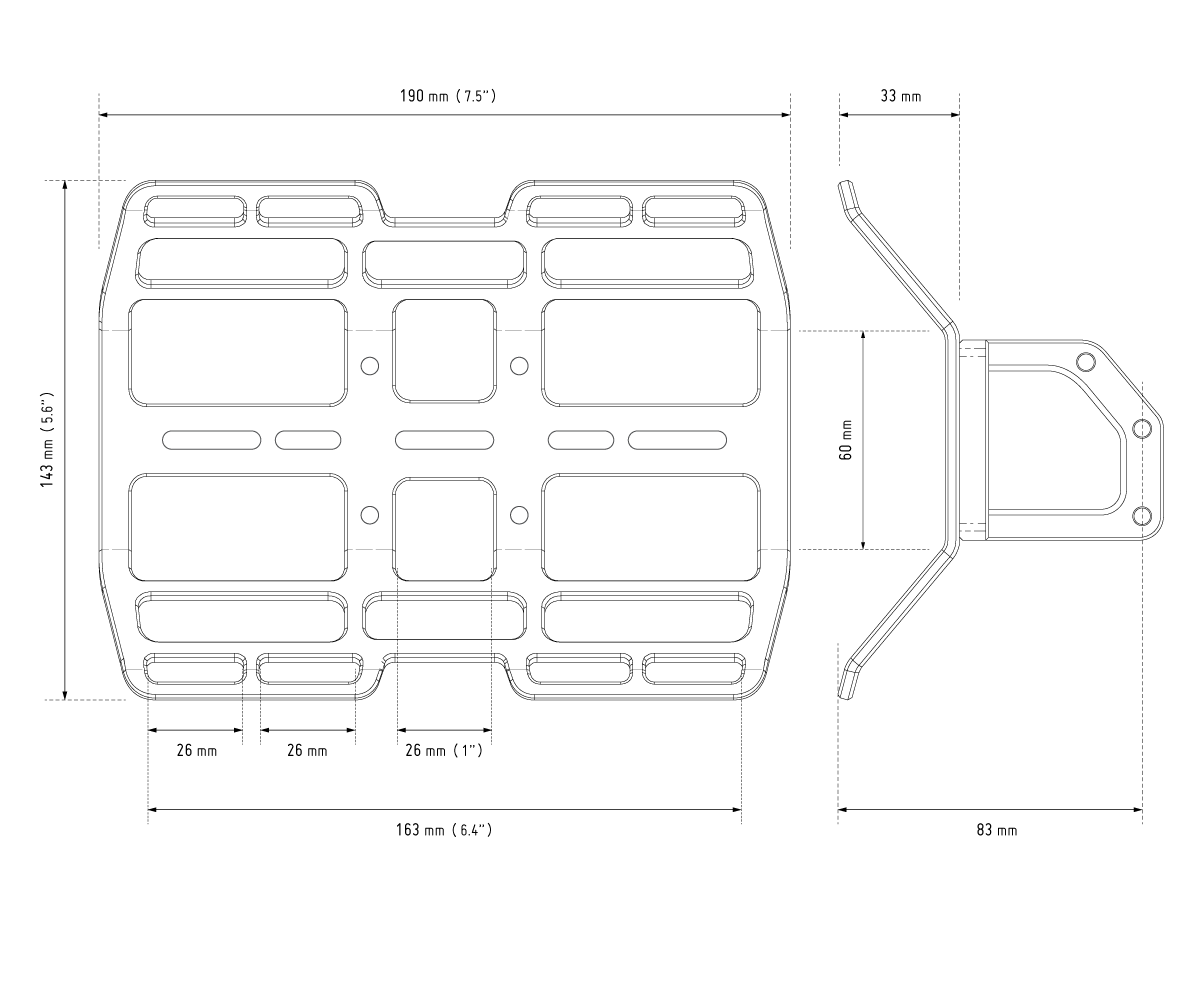

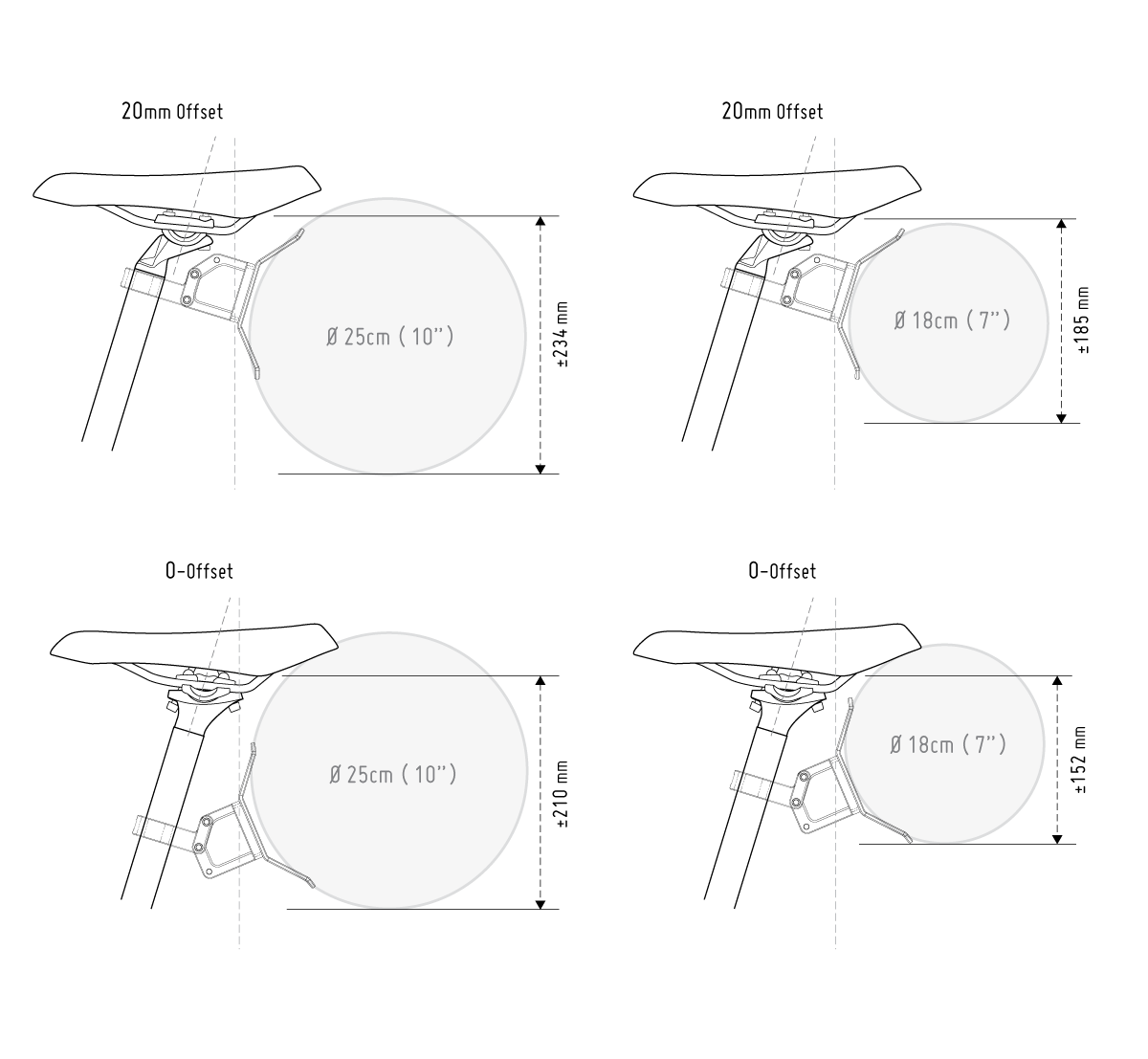

Measurements

Measurements

This rack has multiple slots for various strap arrangements. The smaller slots on the outside accommodate straps with up to 25mm (1 inch) wide, and allowing the strap to pass through at least twice, which helps manage the remaining ends.

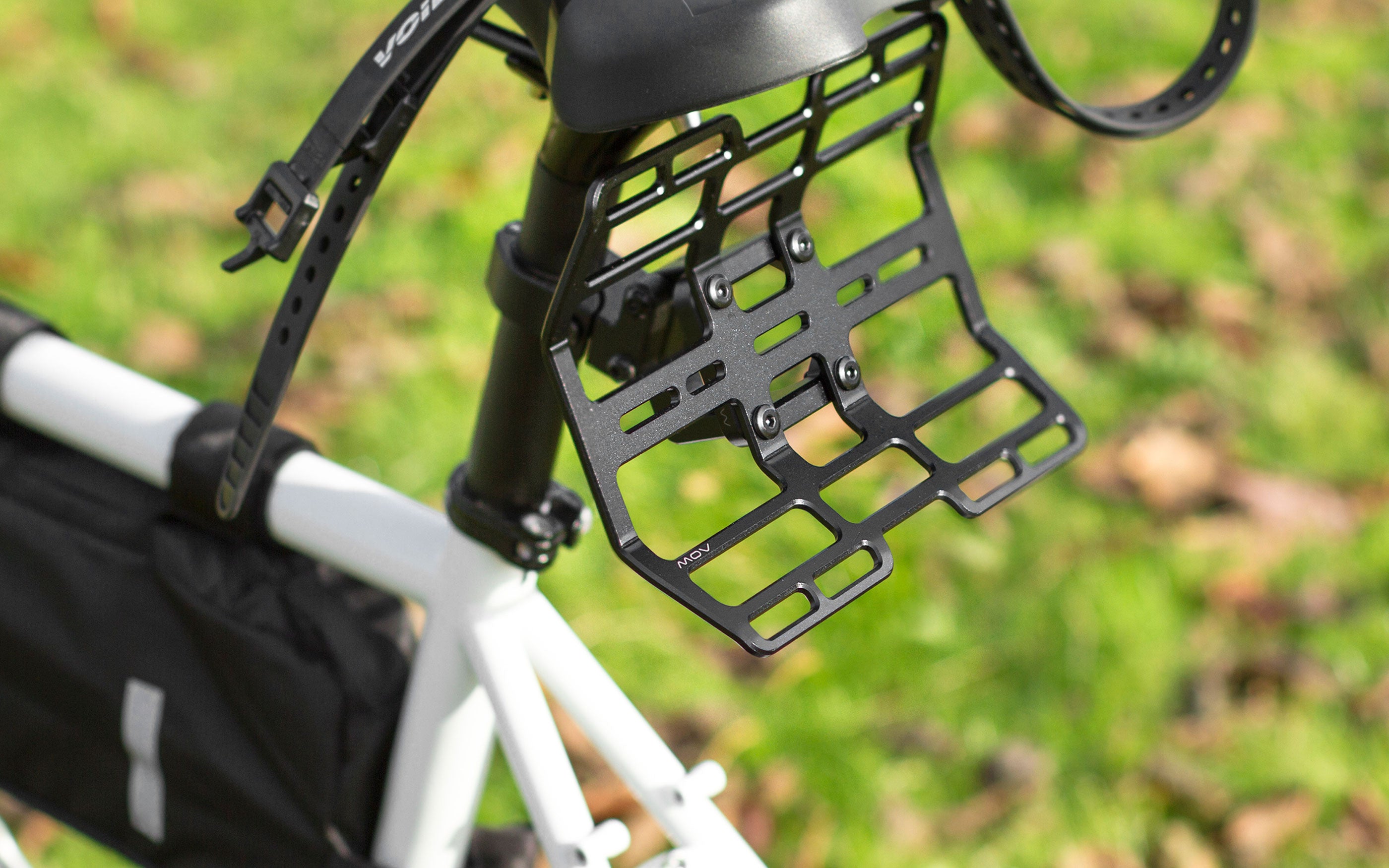

Tilting Up or Down

Tilting Up or Down

The rack has two tilting angles. The downward option will fit most bikes and keep the rack away from the thighs even when the saddle is further back.

The upward setting moves the bag closer to the saddle, increasing wheel clearance. Suitable for bicycles with a forward saddle position.
