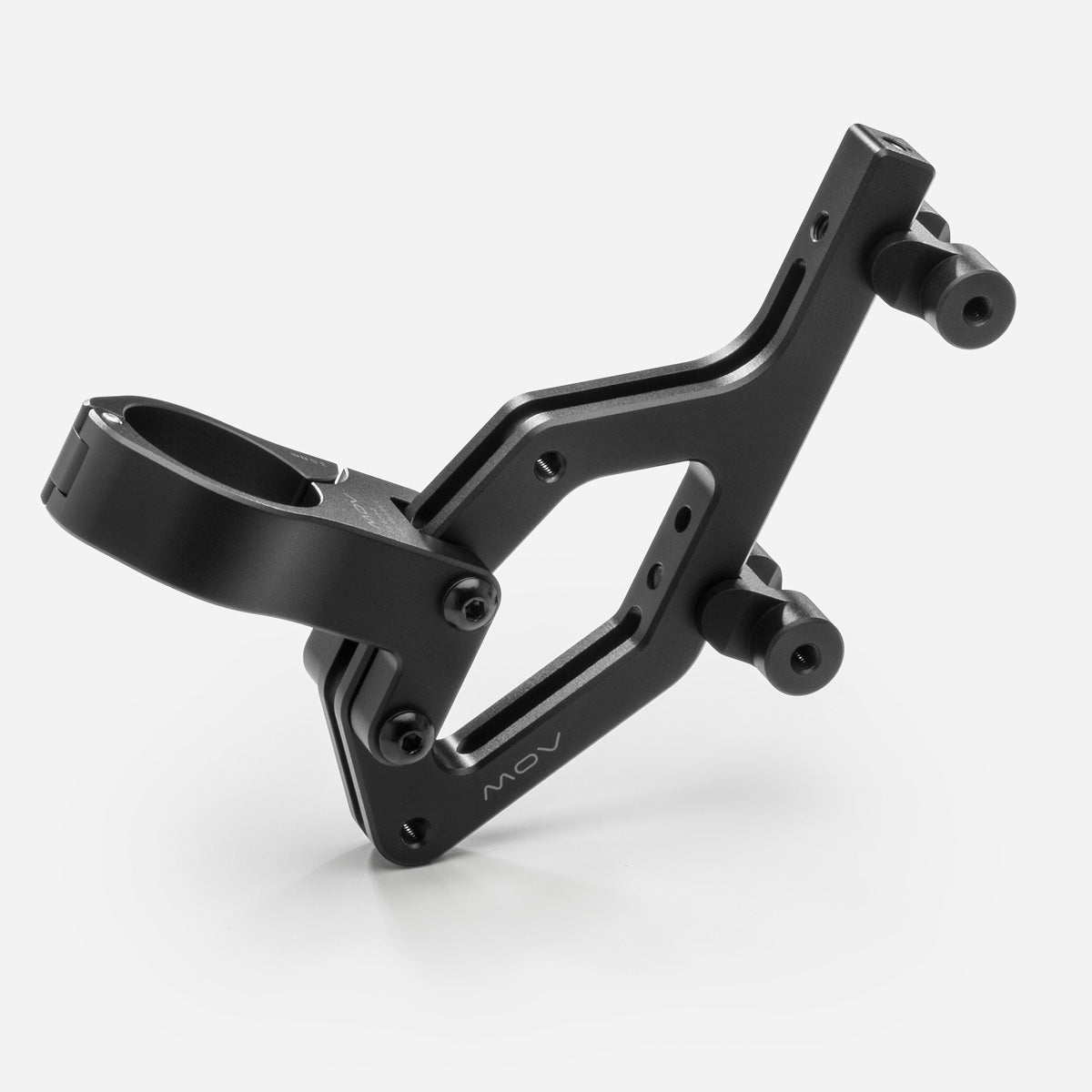

MADH-MS-272S

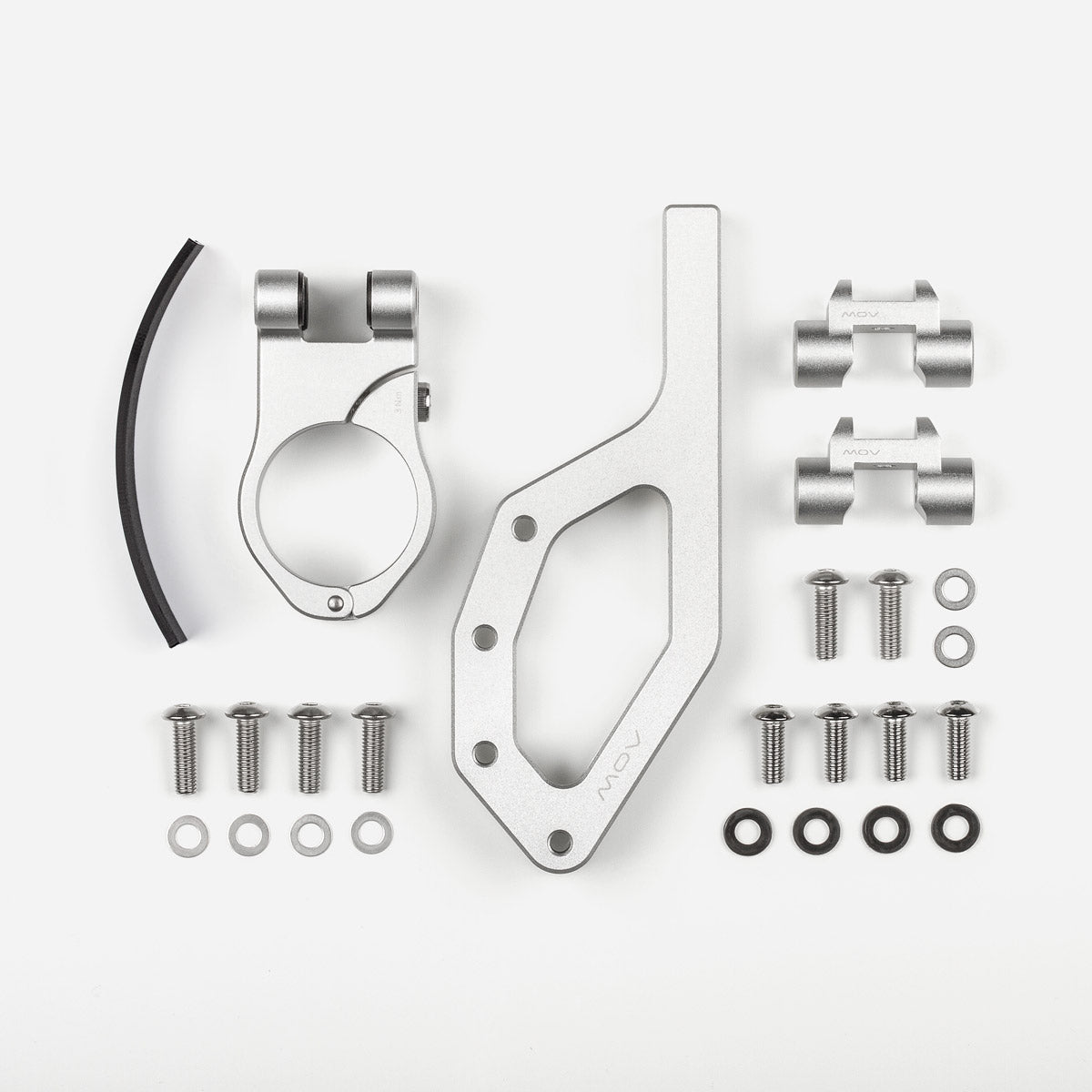

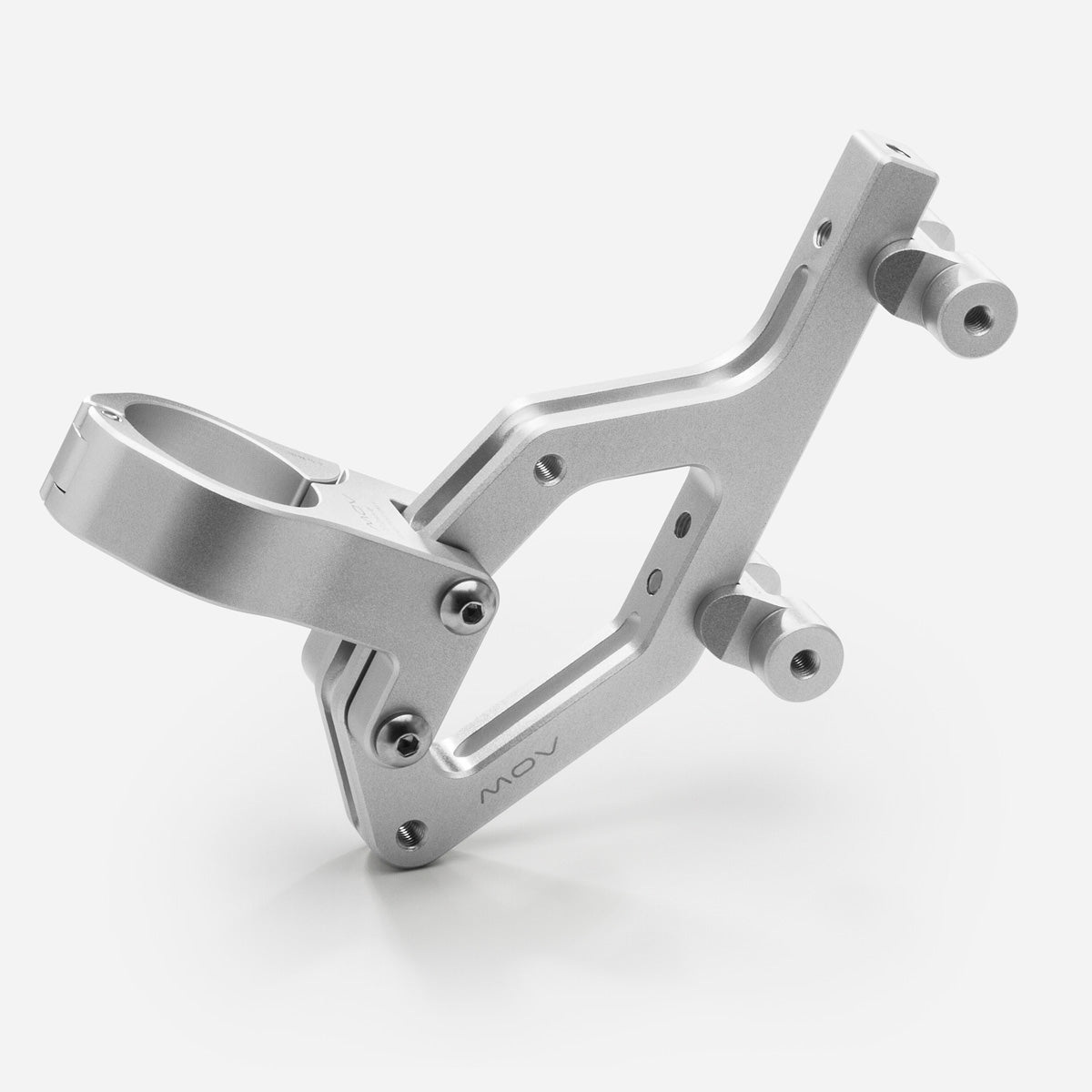

MultiAngle DH Mount Set

MultiAngle DH Mount Set

This modular mount set was originally designed to hold one or two bottle cages at multiple preset angles and positions for both on- and off-road adventures. Users can now add one more bottle cage with the newly included fasteners.
  • Fits bikes with 26.0*, 27.0, 27.2, 30.9, 31.6, and 31.8 mm round seat posts.
  • Load limit: 3 litres of fluid with bottles and cages, or 7 lb (3.2 kg) in total.
  • An optional Rear-Light Holder can be added between bottles in the Duo-bottle setup.
Colour: Silver
Seatpost Size

* Rubber pad for mounting on Ø25.8-26.2 seat posts is available with the purchase of a 27.0/27.2 clamp. Please request in the "Order Notes” during checkout.

$77.00 CAD
$110.00 CAD $77.00 CAD
Sale Sold out
Shipping calculated at checkout.

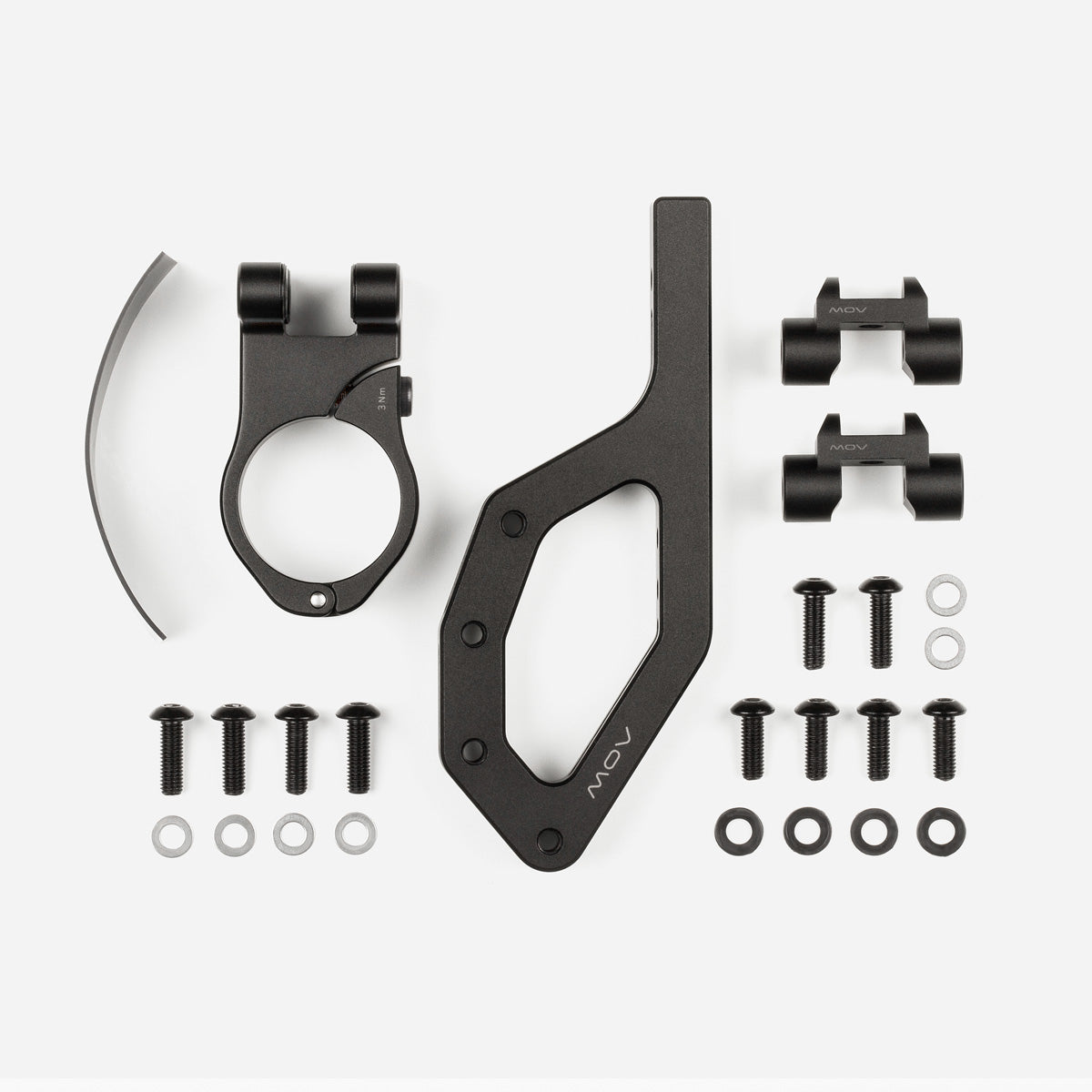

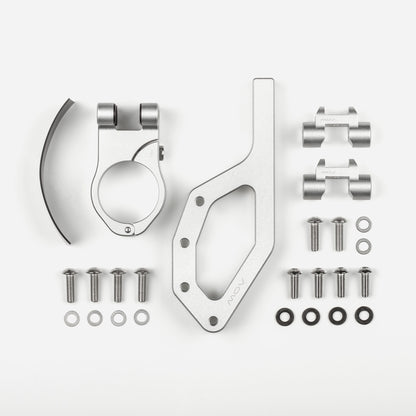

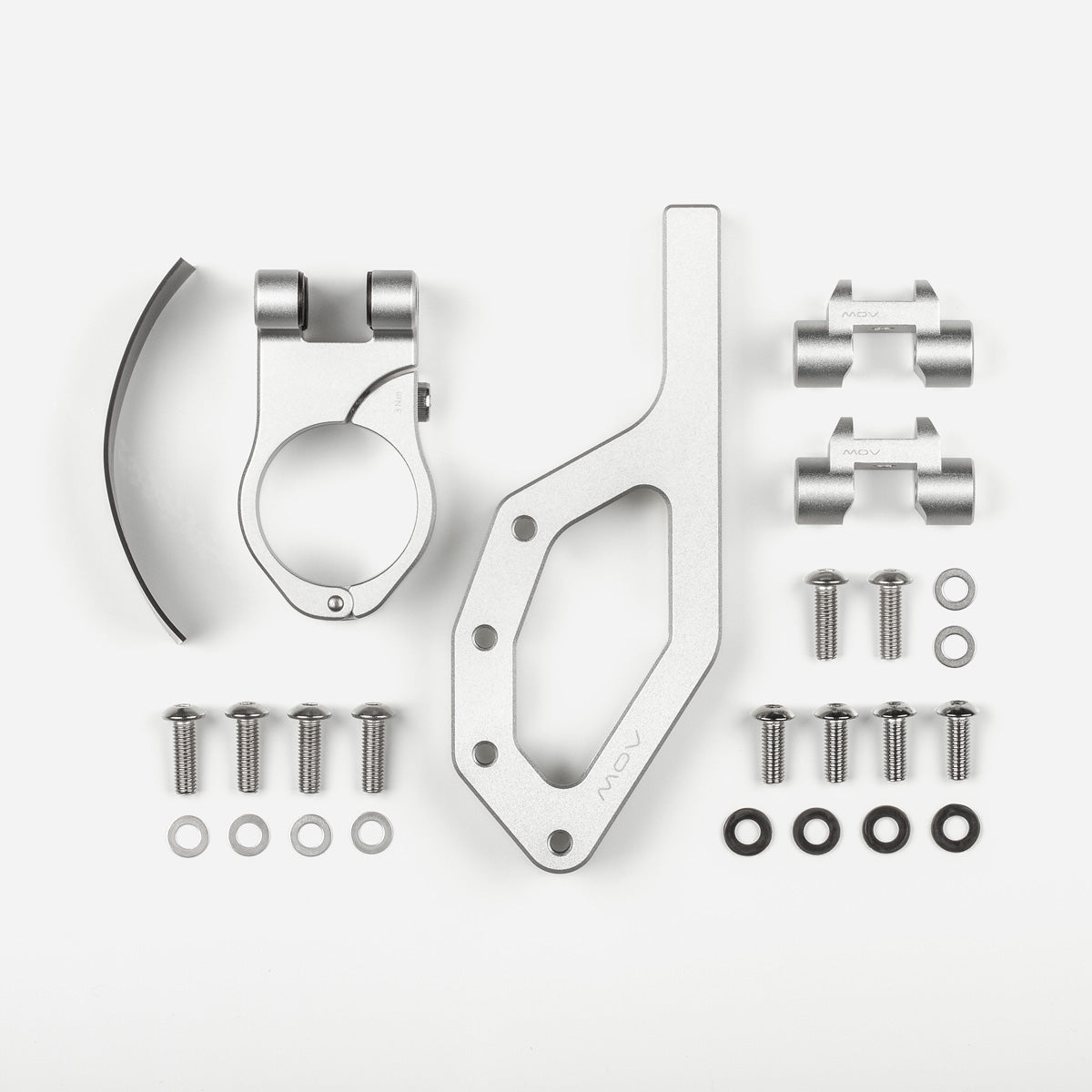

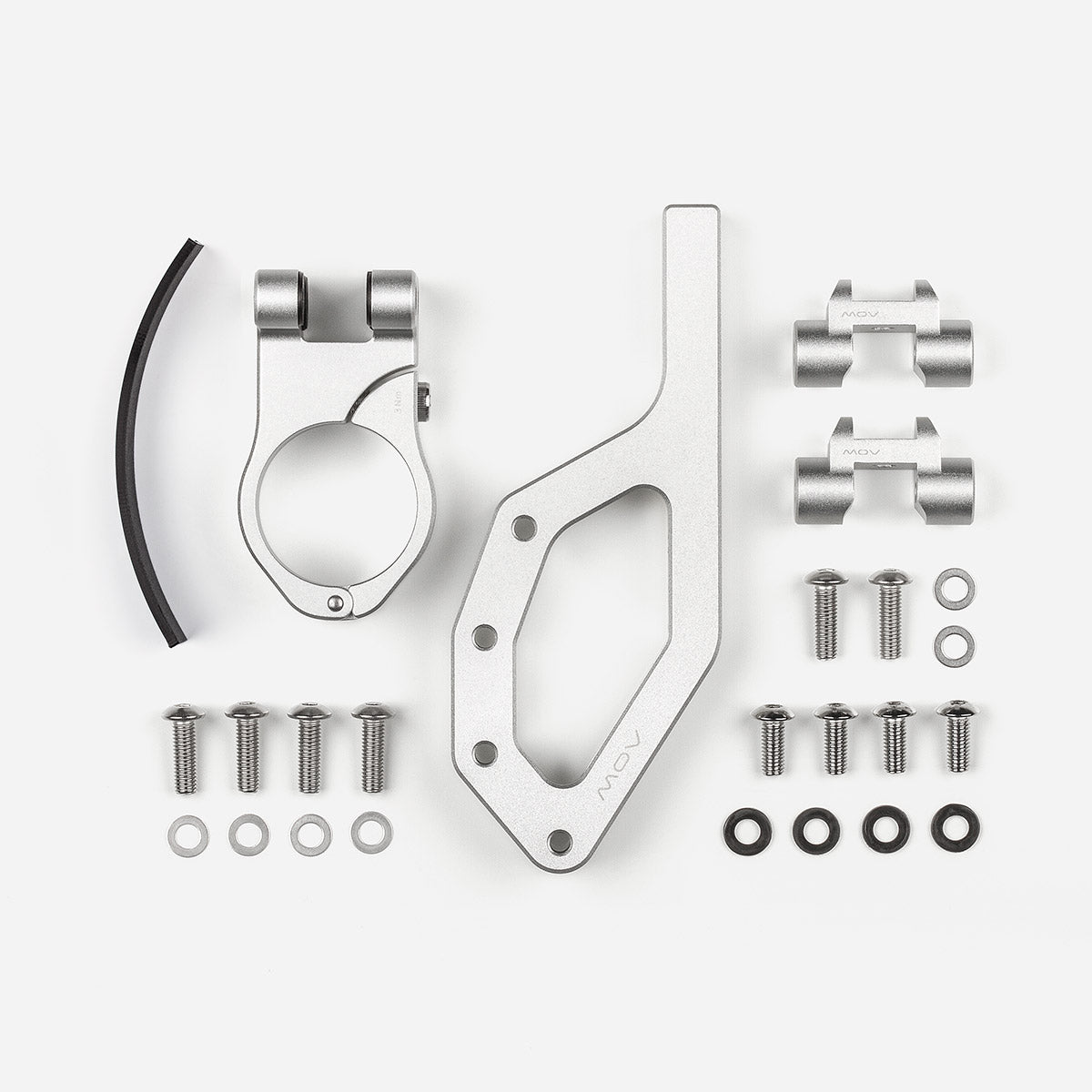

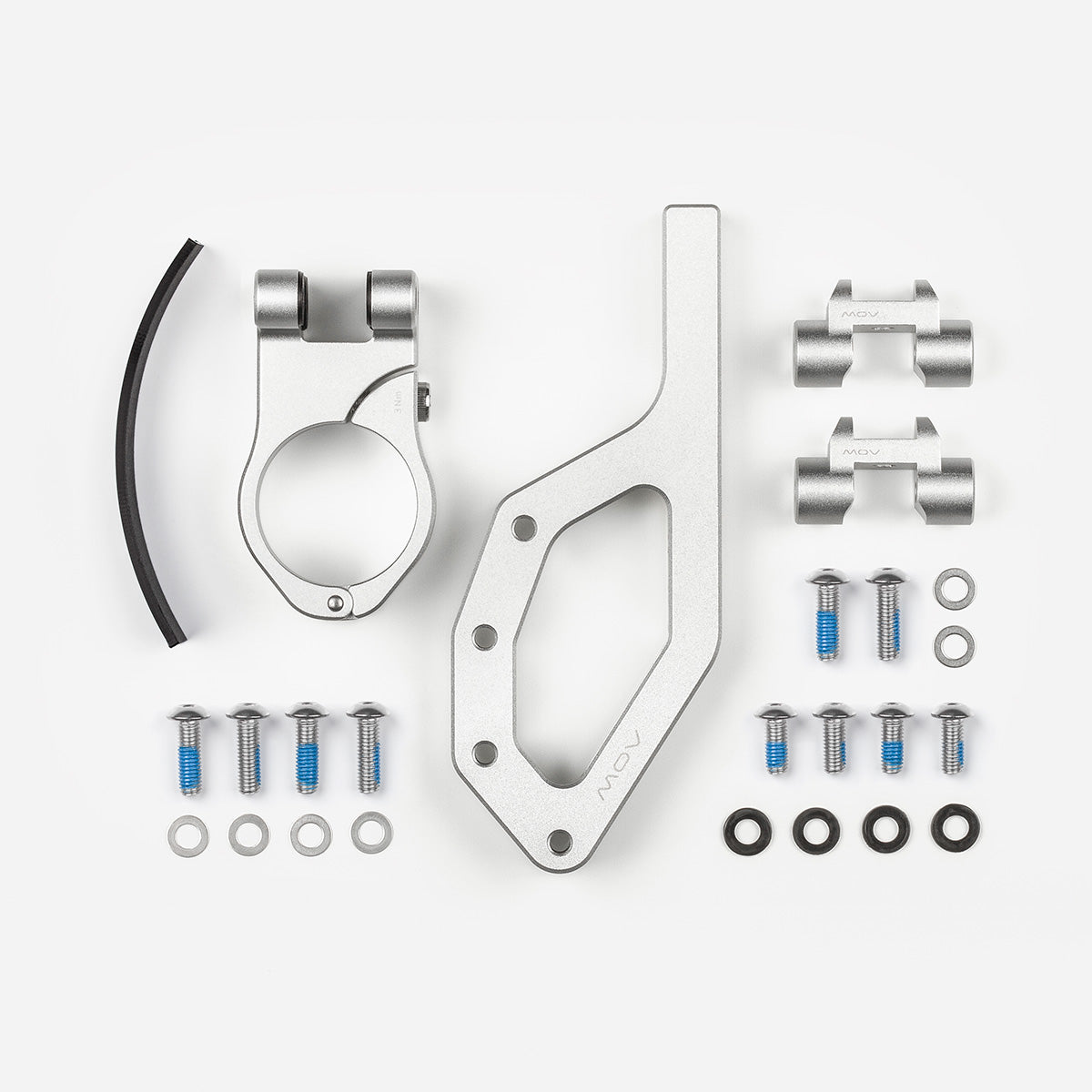

Material

Anodized aluminum parts, nylon bushings, TPU rubber pad, S.S. screws, S.S. & nylon washers

Weight

203 g / set with 27.2 BASE Clamp
206 g / set with 31.6/8 BASE Clamp

*Exclude fasteners for 3-bottle setup

User Guides

MultiAngle Mount Set User Guide ( PDF )
BASE Clamp User Guide ( PDF )
Dual-Holders User Guide ( PDF )
Set Up The 3rd Bottle Cage ( PDF )

View full details

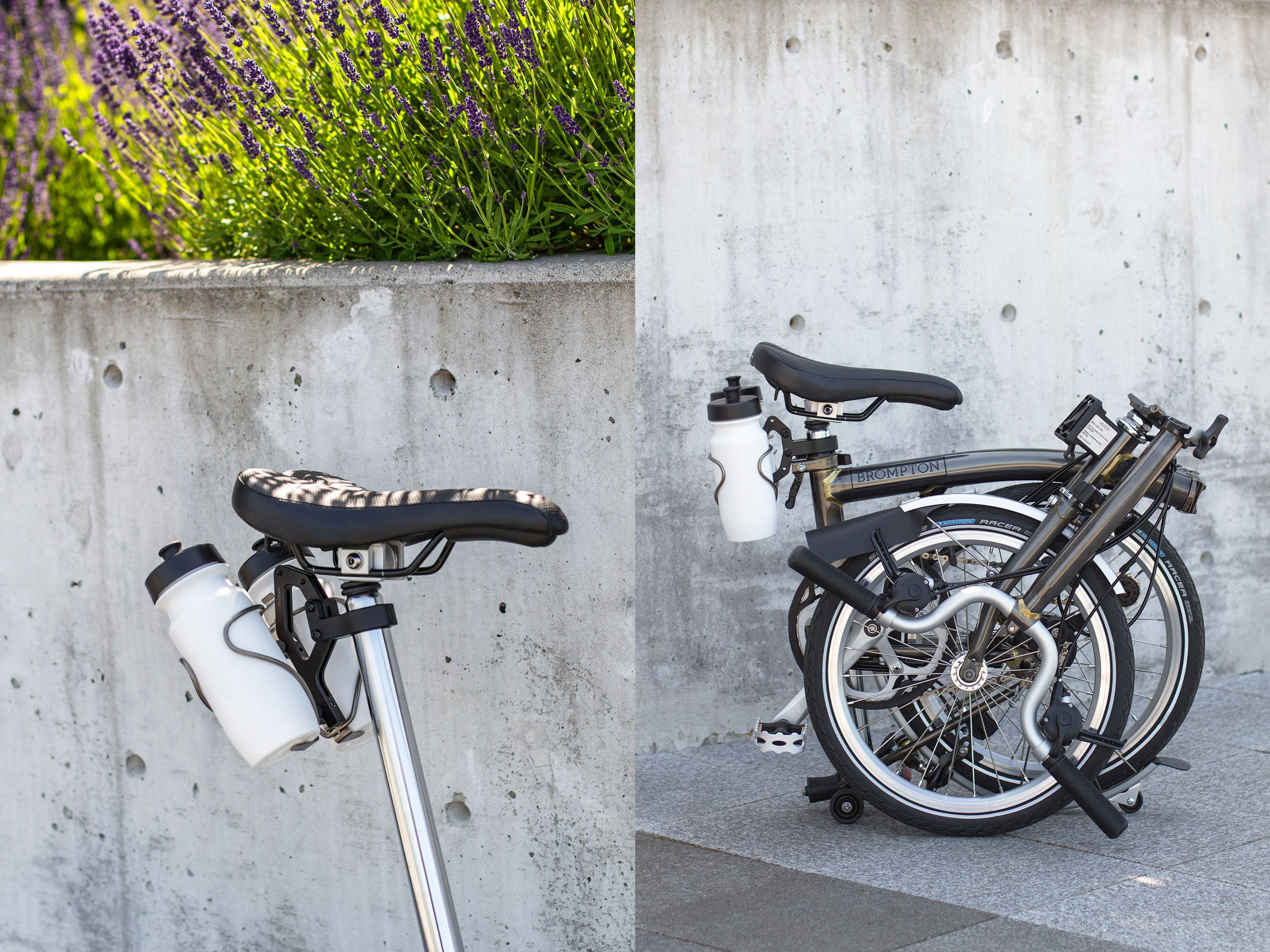

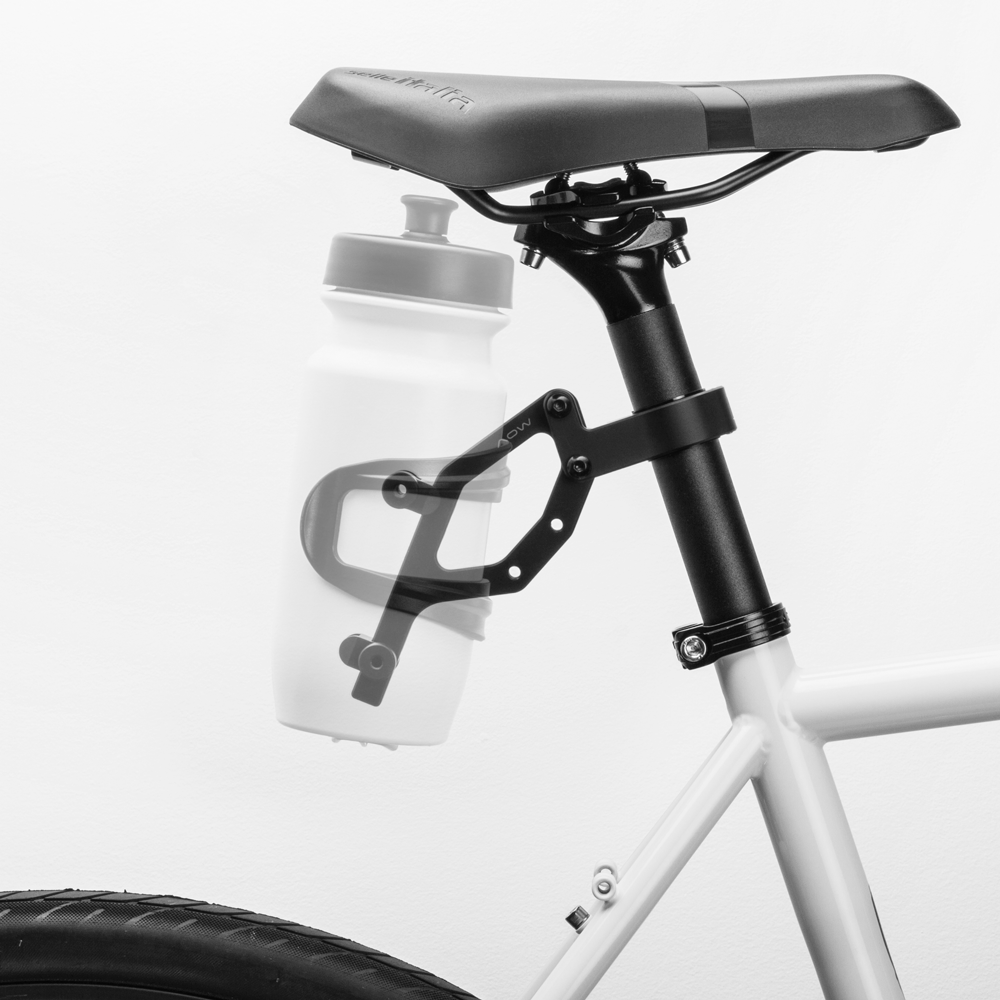

5 Basic Orientations

The MultiAngle Mount can be rotated and flipped upside down to provide the perfect orientation for accessing the water bottle.

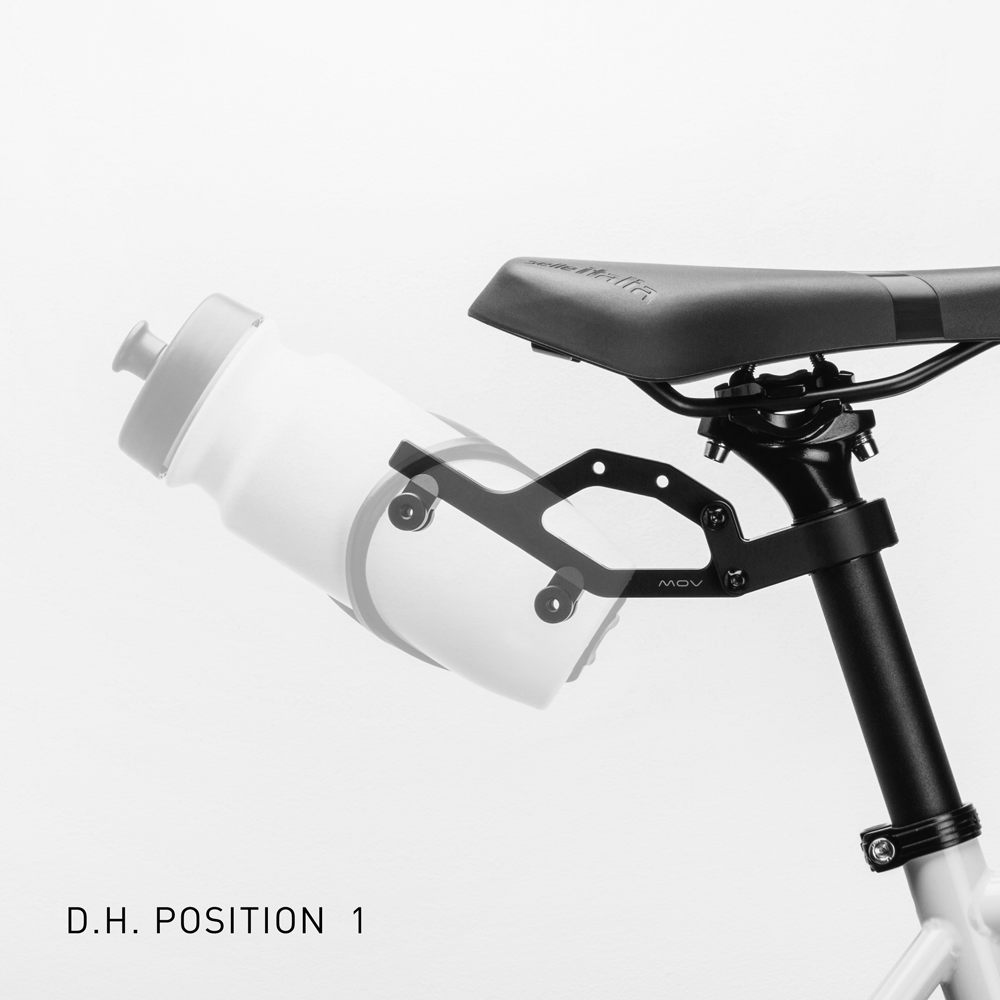

9 Fine-tuned angles

These settings provide flexibility in duo-bottle positions to match the saddle position, rider’s posture, and the available space above the wheel.

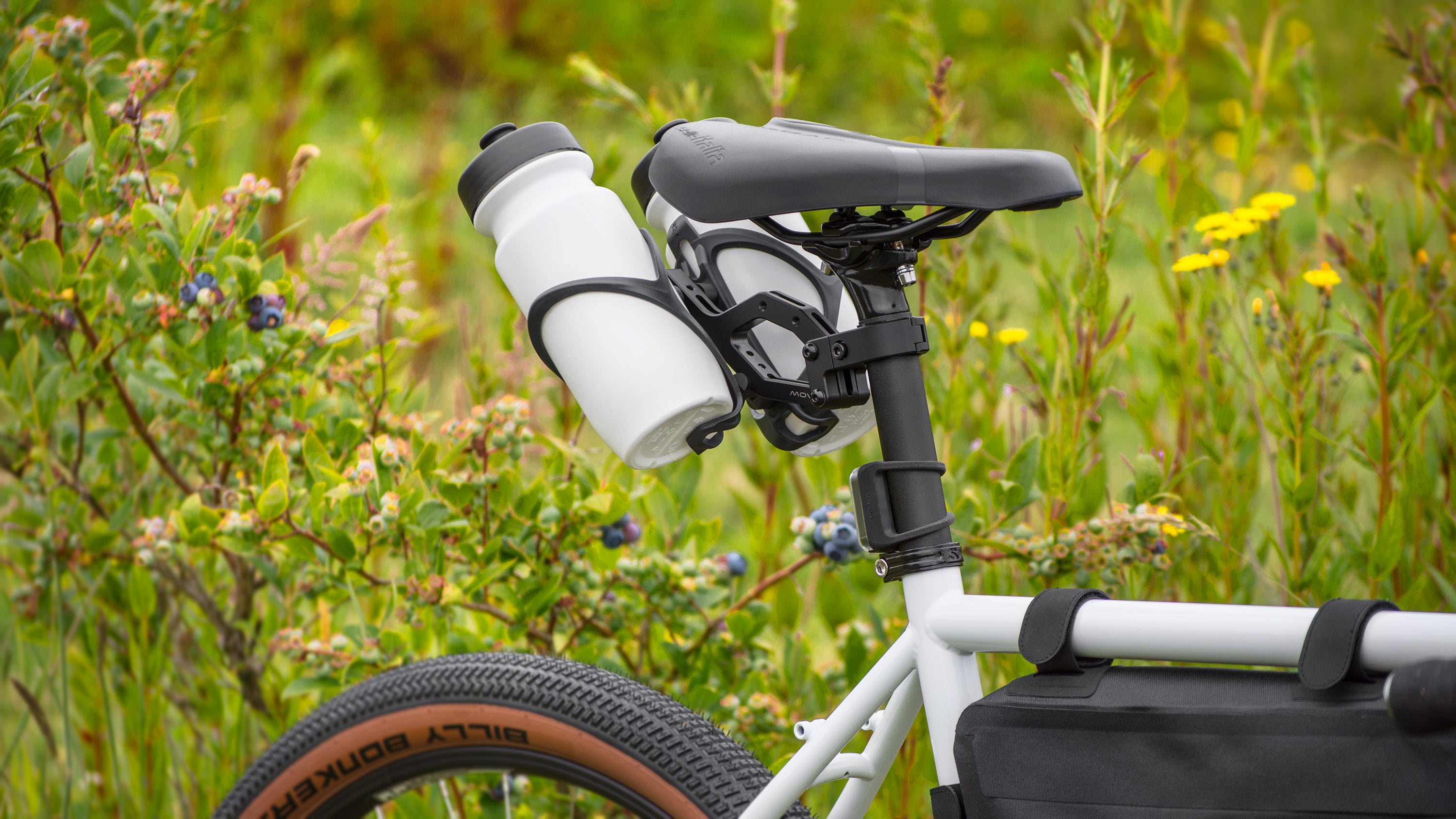

Upward Settings

These dual-bottle alignments can eliminate possible leg rubbing on mounted bottles in most saddle positions if there is ample space above the wheel.

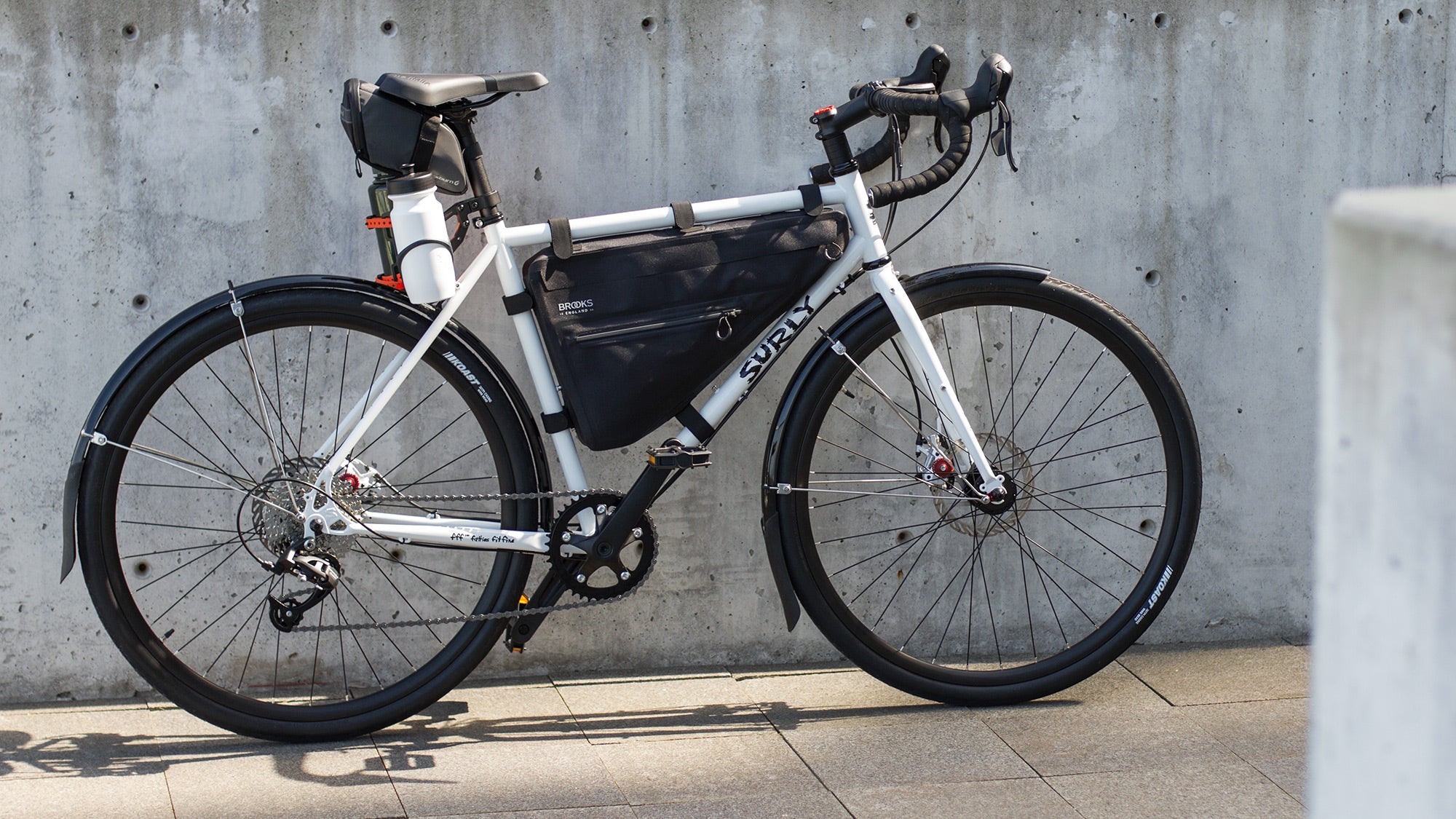

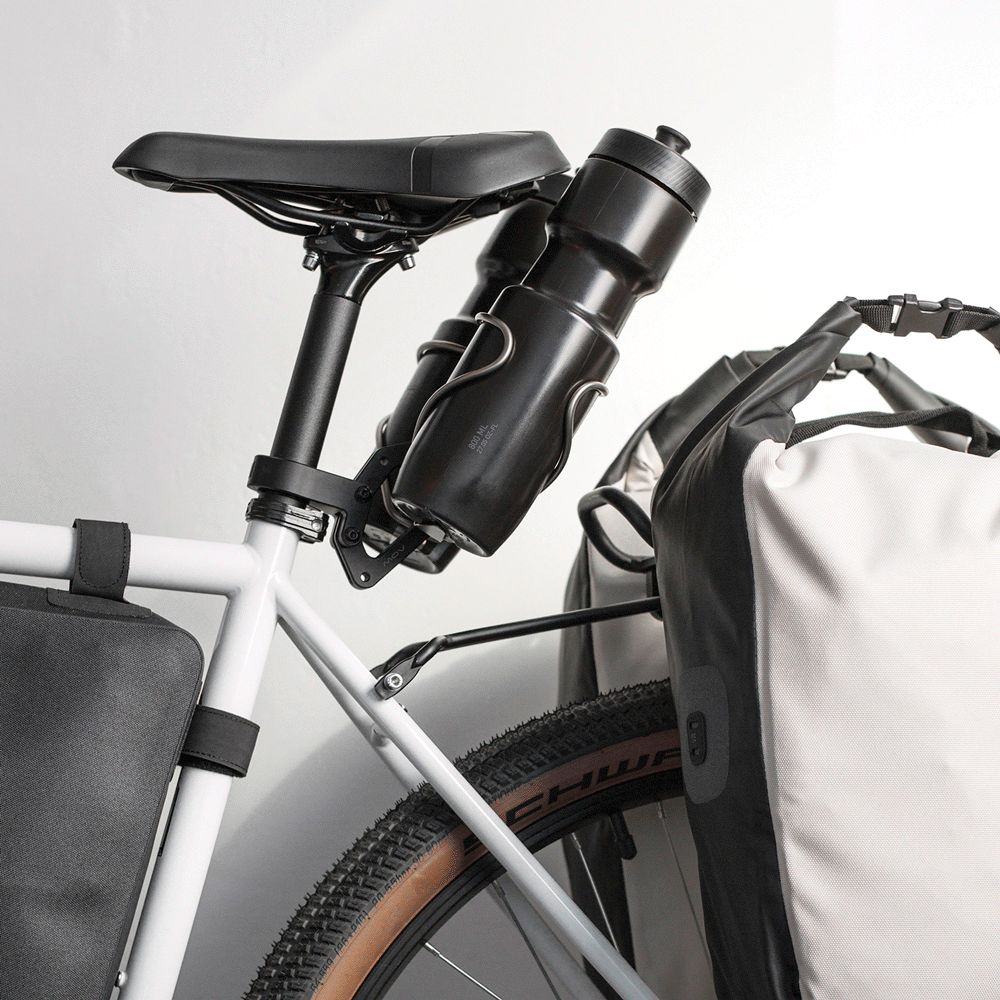

Touring with panniers?

No worries; you can store small or large bottles behind the seat post with a rear rack and bags installed.

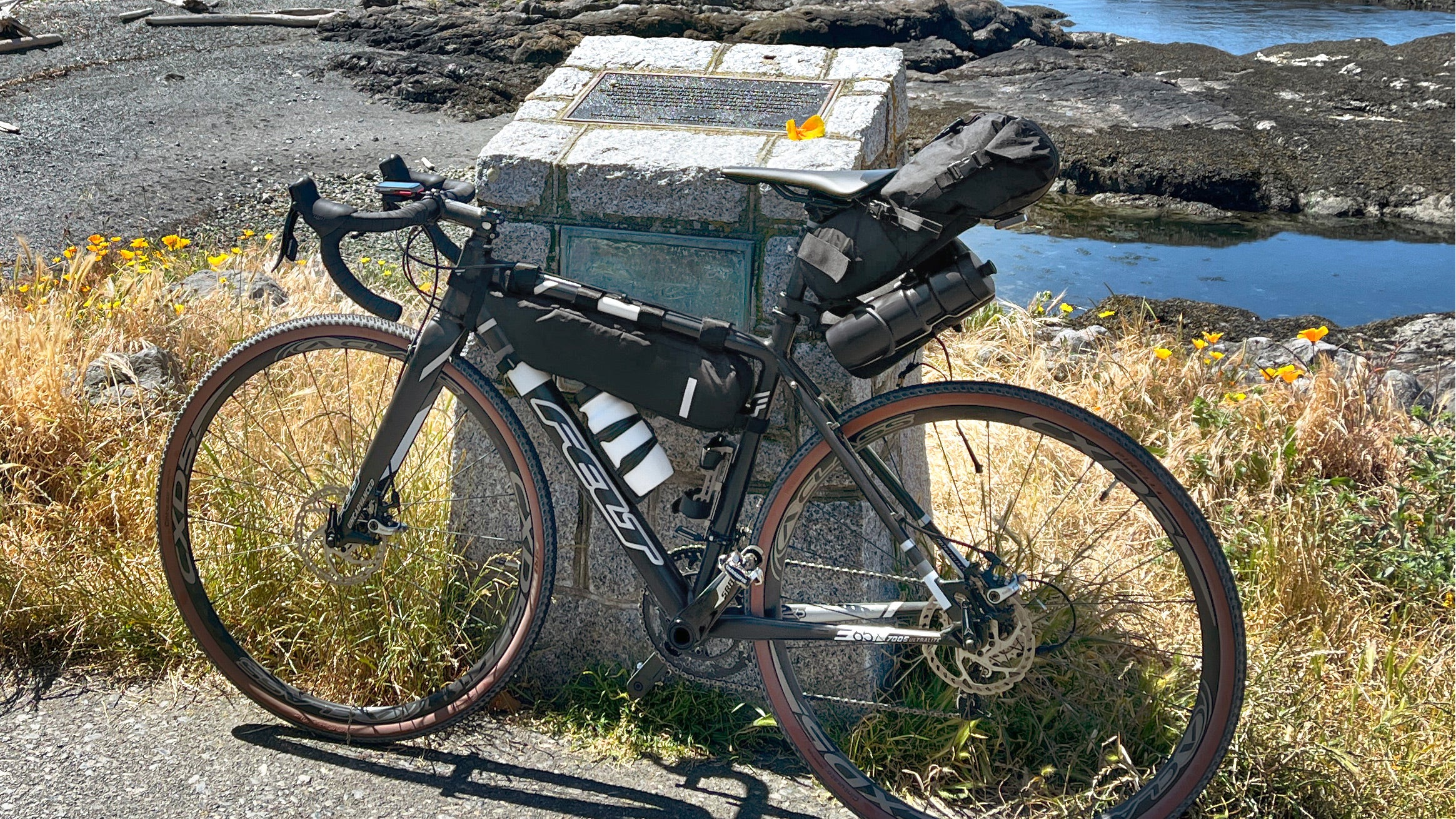

Switch to a 3-Bottle setup whenever you need

  • Adding the third bottle cage (metal cage only) or Compact Rack is straightforward.

  • The dedicated stainless steel fasteners add only 18 grams to the duo-bottle setup.

  • The trio-bottle setup can be installed in three different positions to adapt your bike setup.

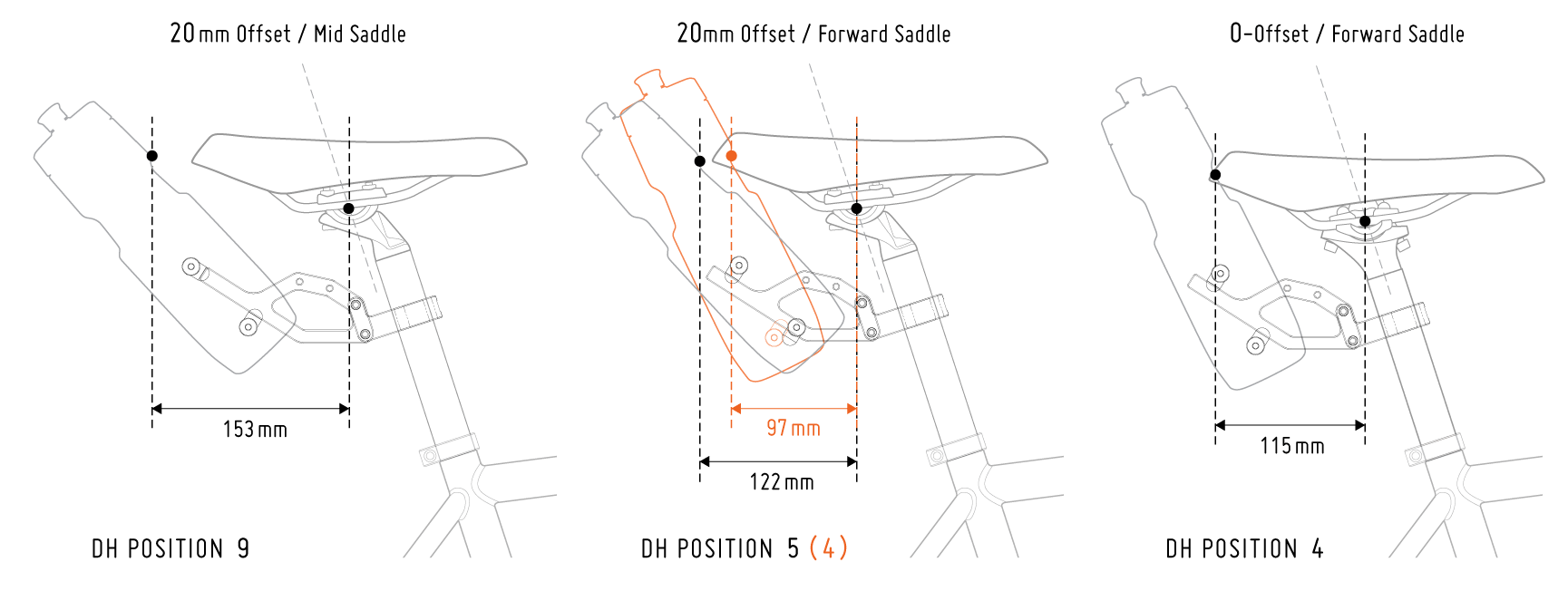

Space for upward bottles

When space is insufficient to use with a setback seat post and backward saddle, user can switch the D.H. setting for a lower bottle angle or move the whole M.M.S. to a lower position.

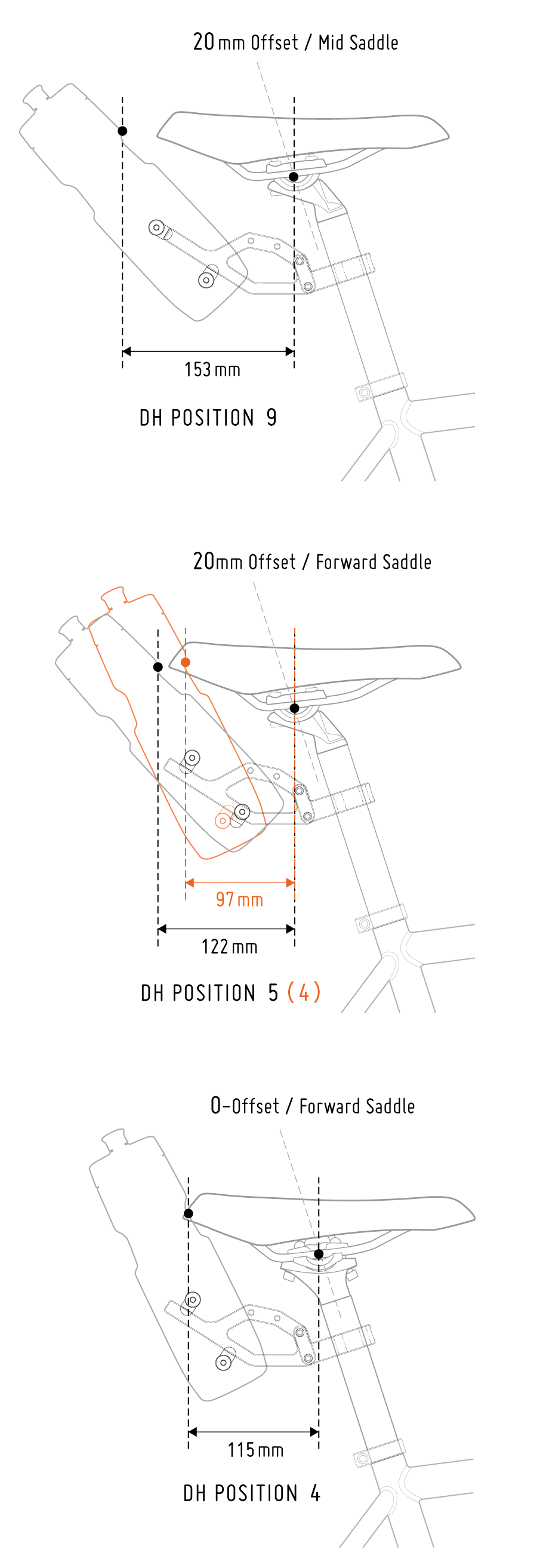

Will the mount set fit my bike?

The mount set will fit various saddle positions. When set up on a setback seatpost with a backward saddle, you can choose different Duo-Holder positions for a less upright bottle angle or lower the whole set.

–
